8WH Diode Terminals

Разделы

ENG: 8WH Diode Terminals

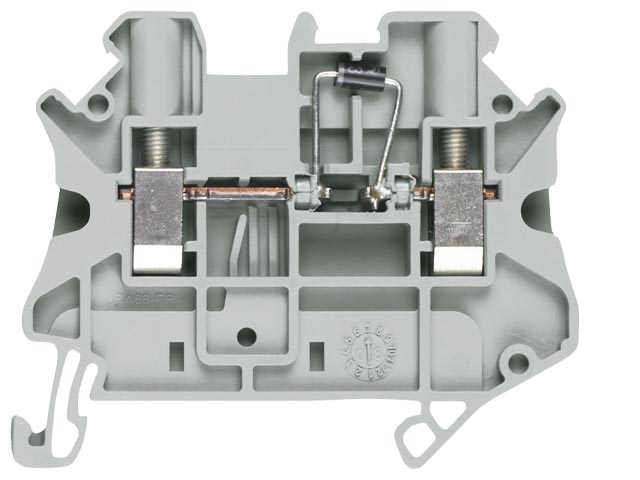

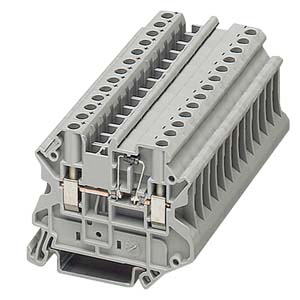

8WH diode terminals can be used to implement many different switching tasks. The 1N 4007 diode is soldered in from left to right or vice versa as required. The double bridge shaft allows for combination with all standard and function terminals. The 8WH diode terminals have the same contour as the 8WH isolating, isolating blade and fuse terminals. This provides the advantage of being able to put inscriptions on all clamping points. Sure electrical and mechanical contact with the mounting rail is assured by simply snapping the terminals onto the rail.



Version

Order No.

Terminal size 4 mm²



8WH1 000-6KG00

Diode terminals, terminal size 4mm²

  • CURUS
  • CSA
  • Terminal width 6.2 mm
  • I max = 0.5 A
  • U max = 800 V
  • AWG 26-10
  • Connection capacity, one conductor
  • rigid 0.14... 6 mm²
  • Flexible 0.14... 6 mm²
  • Connection capacity, two conductors
    • rigid 0.14... 1.5 mm²
  • Flexible 0.14... 1.5 mm²
  • With integrated diode: 1N 4007
  • Gray


Versions


  • let-through from left to right


8WH1000-6LG00
  • let-through from right to left


8WH1000-6KG00

Accessories

Section


  • Cover, for diode terminals, for terminal size 2.5 to 4 mm²

Accessories

8WH9000-2PA00
  • Warning covers, for terminal size 4 mm²

dto.

8WH9063-5BA06

Accessories



8WH9 000-2PA00

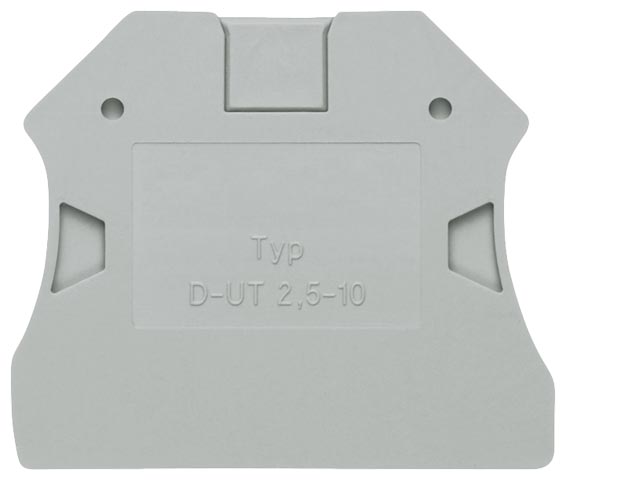

Cover, for diode terminals, for terminal size 2.5 to 4 mm²

  • Width 2.2 mm
  • Gray

8WH9000-2PA00


Warning covers, for terminal size 4 mm²

  • Motif Blitz
  • yellow

8WH9063-5BA06




Технические данные

ENG: 8WH Diode Terminals


8WH1 000-6KG00

8WH1 000-6LG00

Dimensions


  • Width / Length / Cover width in mm

6,2 / 57,8 / 2,2


  • Height (NS 35/7,5 / NS 35/15) in mm

47,5 / 55



Technical specifications according to IEC/ DIN VDE


  • Max. load current in A / cross-section in mm²

--1) / 6


  • Rated impulse (withstand) voltage in kV / pollution degree

8 kV/3


  • Rated insulation voltage (working voltage) Ui in V according to IEC 60497-7-1

800


  • Overvoltage category / insulating group

III / I



Connection capacity


  • Flexible with end sleeve, with plastic sleeve in mm²

0,25 ... 4


  • Flexible with end sleeve, without plastic sleeve in mm²

0,25 ... 4


  • Flexible with two-wire connection end sleeve, with plastic sleeve in mm²

0,5 ... 2,5


  • rigid in mm²

0,14 ... 6



Stripped length in mm

9



Molded plastic type

PA


  • Flammability class according to UL 94

V0



Approval data (UL/CUL and CSA)


  • Rated voltage / rated current / conductor sizes

  • UL/CUL: in V/A / AWG

600 / 1 / 26-10

600 / 1 / 26-10
  • CSA: in V/A / AWG

600 / 1 / 26-10

600 / 1 / 26-10

1) Maximum current determined by diode. Integrated: Diode 1N 4007, blocking voltage:1300 VMax. current: 0.5 A
