Terminal size 4 mm²

8WH1 000-1GG08

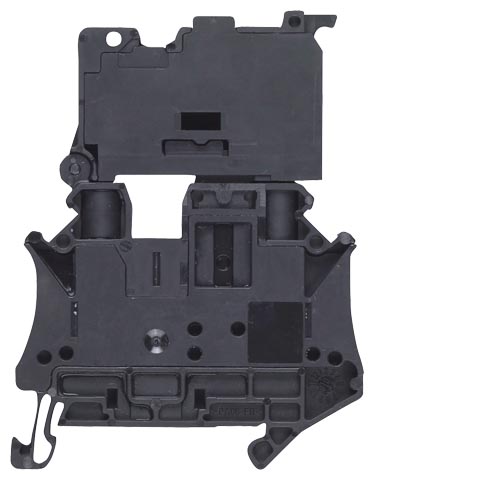

Fuse terminals, terminal size 4 mm², for 5 X 20 mm G fuse links

• CURUS
• CSA
• Terminal width 6.2 mm
• I max = 6.3 A
• U max = 500 V
• AWG 26-10
• Connection capacity, one conductor

• rigid 0.14... 6 mm²
• Flexible 0.14... 6 mm²

• Connection capacity, two conductors

• rigid 0.14... 1.5 mm²
• Flexible 0.14... 1.5 mm²

• Enclosed on both sides
• black

Versions

• without LED

8WH1000-1GG08

• With LED 10 ... 30 V AC/DC

8WH1000-1KG38

• With LED 110 ... 250 V AC/DC

8WH1000-1MG88

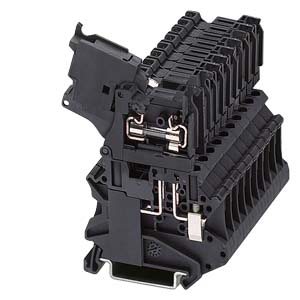

Terminal size 6 mm²

8WH1 000-1HH08

Fuse terminals, terminal size 6 mm², for 6,3 X 32 mm G fuse links

• CURUS
• Terminal width 8,2 mm
• I max = 10 A
• U max = 630 V
• AWG 24-8
• Connection capacity, one conductor
  • rigid 0.2... 10 mm²
  • Flexible 0.2... 10 mm²
• Connection capacity, two conductors
  • rigid 0.2... 2.5 mm²

• Flexible 0.2... 2.5 mm²

• Enclosed on both sides
• black

Versions

• without LED

8WH1000-1HH08

• With LED 12 ... 30 V AC/DC

8WH1000-1PH38

Accessories

Section

Reducing bridge, for connecting terminals, from terminal size­ 6 mm 2 to 2.5 or 4 mm 2 , from screw to screw

Accessories

8WH9002-8AC10

Accessories

8WH9 002-8AC10

Reducing bridge, for connecting terminals, from terminal size­ 6 mm2 to 2.5 or 4 mm2, from screw to screw

8WH9002-8AC10

Dimensions

• Width / Length / Cover width in mm

6,2 / 57,8 / --

8,2 / 57,8 / --

• Height (NS 35/7,5 / NS 35/15) in mm

73 / 80,5

Technical specifications according to IEC/ DIN VDE

• Max. load current in A1) / cross-section in mm²

6,3 / 6

10 / 10

• Rated impulse (withstand) voltage in kV / pollution degree

6 kV/3

4 kV/3

8 kV/3

6 kV/3

• Rated insulation voltage (working voltage) Ui in V according to IEC 60497-7-1

500

630

• Overvoltage category / insulating group

III / I

Connection capacity

• Flexible with end sleeve, with plastic sleeve in mm²

0,25 ... 4

0,25 ... 6

• Flexible with end sleeve, without plastic sleeve in mm²

0,25 ... 4

0,25 ... 6

• Flexible with two-wire connection end sleeve, with plastic sleeve in mm²

0,5 ... 2,5

0,5 ... 4

• rigid in mm²

0,14 ... 6

0,2 ... 10

Stripped length in mm

9

10

Molded plastic type

PA

• Flammability class according to UL 94

V0

Approval data (UL/CUL and CSA)

• Rated voltage / rated current / conductor sizes

• UL/CUL: in V/A / AWG

600 / 6,3 / 26-10

600 / 16 / 24-8

• CSA: in V/A / AWG

600 / 6,3 / 26-10

-- / -- / --
