Terminal size 4 mm²

8WH1 000-6CG00

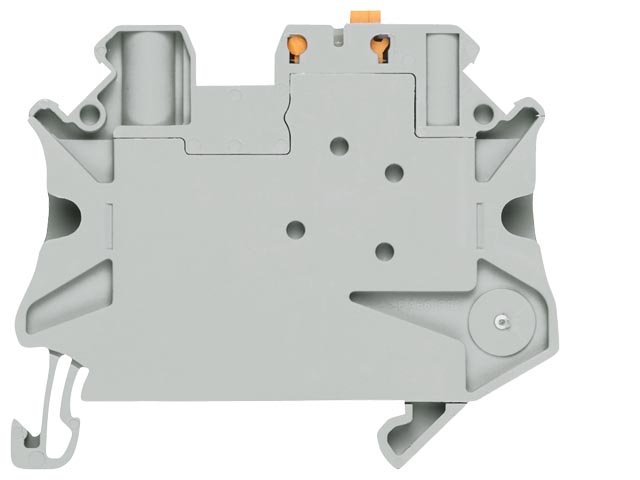

Isolating blade terminals, terminal size 4 mm²

• CURUS
• CSA
• Terminal width 5.2 mm
• I max = 32 A
• U max = 1000 V
• AWG 26-12
• Connection capacity, one conductor
  • rigid 0.14... 4 mm²
  • Flexible 0.14... 4 mm²
• Connection capacity, two conductors
  • rigid 0.14... 1.5 mm²

• Flexible 0.14... 1.5 mm²

• Enclosed on both sides
• Gray

8WH1000-6CG00

Accessories

Section

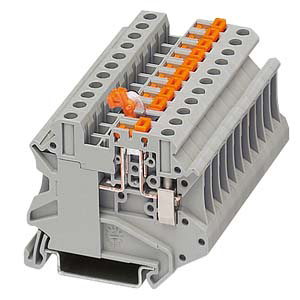

Warning covers, for terminal size 4 mm²

Accessories

8WH9063-5BA06

Accessories

Warning covers, for terminal size 4 mm²

• Motif Blitz
• Width 6.2 mm
• yellow

8WH9063-5BA06

Dimensions

• Width / Length / Cover width in mm

6,2 / 57,8 / --

• Height (NS 35/7,5 / NS 35/15) in mm

49,1 / 56,6

Technical specifications according to IEC/ DIN VDE

• Max. load current in A1) / cross-section in mm²

20 / 6

• Rated impulse (withstand) voltage in kV / pollution degree

6 kV/3

• Rated insulation voltage (working voltage) Ui in V according to IEC 60497-7-1

500

• Overvoltage category / insulating group

III / I

Connection capacity

• Flexible with end sleeve, with plastic sleeve in mm²

0,25 ... 4

• Flexible with end sleeve, without plastic sleeve in mm²

0,25 ... 4

• Flexible with two-wire connection end sleeve, with plastic sleeve in mm²

0,5 ... 2,5

• rigid in mm²

0,14 ... 6

Stripped length in mm

9

Molded plastic type

PA

• Flammability class according to UL 94

V0

Approval data (UL/CUL and CSA)

• Rated voltage / rated current / conductor sizes

• UL/CUL: in V/A / AWG

600 / 16 / 26-10

• CSA: in V/A / AWG

600 / 16 / 26-10
