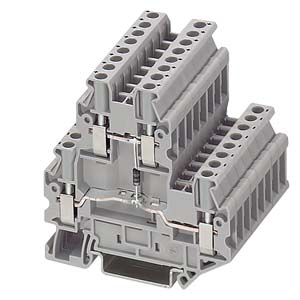

Terminal size 2.5 mm²

8WH1 020-5FF00

Diode terminals, terminal size 2.5mm²

• CURUS
• CSA
• Terminal width 6.2 mm
• I max = 0.5 A
• U max = 800 V
• AWG 26-10
• Connection capacity, one conductor

• rigid 0.14... 6 mm²
• Flexible 0.14... 6 mm²

• Connection capacity, two conductors
  • rigid 0.14... 1.5 mm²

• Flexible 0.14... 1.5 mm²

• With integrated diode: 1N 4007
• Gray

Versions

• With 1N 4007 diode integrated

• Let-through from top to bottom

8WH1020-5AF00

• Let-through from bottom to top

8WH1020-5BF00

• Let-through from bottom left to bottom right:

8WH1020-5DF00

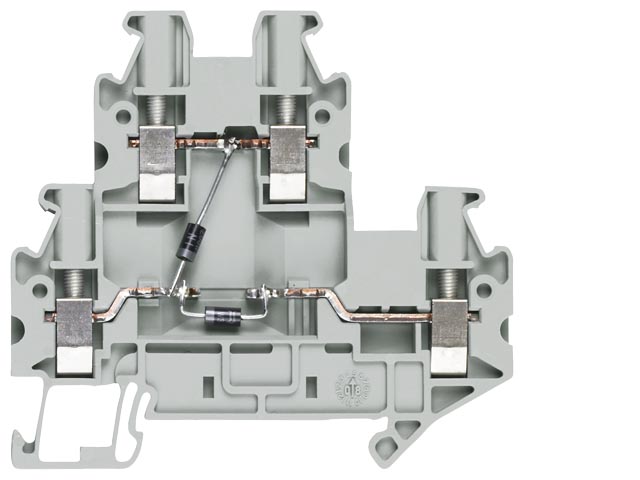

• with two 1N 4007 diodes integrated

• Let-through from top to bottom left and from bottom right to bottom left

8WH1020-5FF00

• Let-through from top to bottom left and from top to bottom right

8WH1020-5HF00

Accessories

Section

• Cover, for two-tier terminals, for terminal size 2.5 to 4 mm²

Accessories

8WH9000-1QA00

• Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm²

dto.

8WH9160-0AA00

• Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm²

dto.

8WH9070-6FA00

Accessories

8WH9 000-1QA00

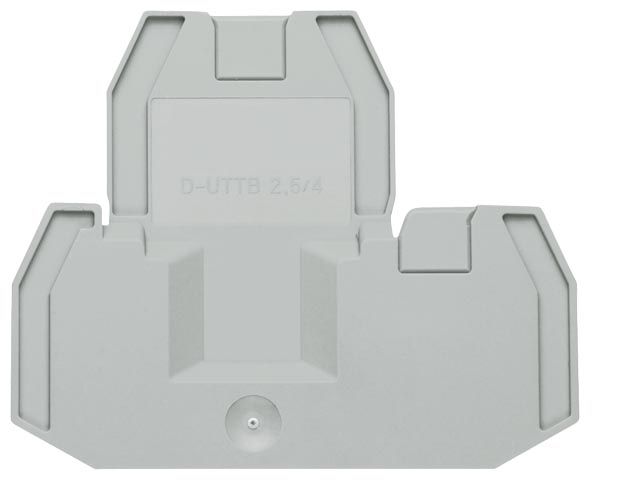

Cover, for two-tier terminals, for terminal size 2.5 to 4 mm²

• Width 2.2 mm
• Gray

8WH9000-1QA00

8WH9 160-0AA00

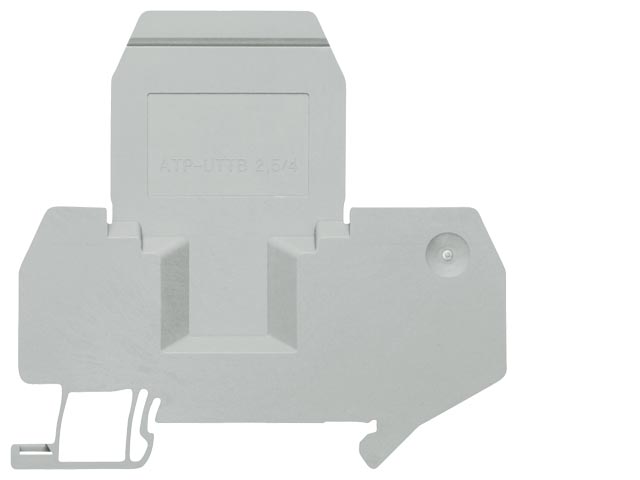

Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm²

• compensates for floor transfers in case other terminals are mounted.
• 2.5 mm thick.
• Gray

8WH9160-0AA00

8WH9 070-6FA00

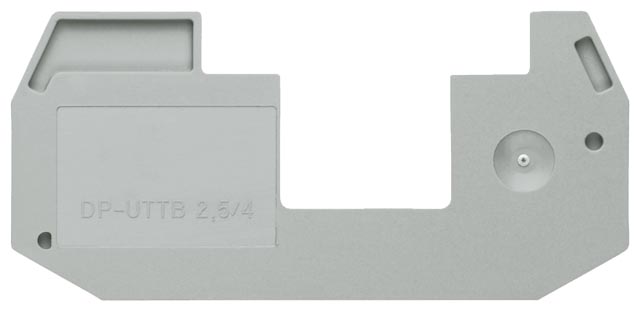

Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm²

• for visual and electrical separation of terminal groups
• 2 mm thick.
• Gray

8WH9070-6FA00

Dimensions

• Width / Length / Cover width in mm

5,2 / 69,9 / 2,2

• Height (NS 35/7,5 / NS 35/15) in mm

65 / 72,5

Technical specifications according to IEC/ DIN VDE

• Max. load current in A / cross-section in mm²

28 / 4

• Rated impulse (withstand) voltage in kV / pollution degree

6 kV/3

• Rated insulation voltage (working voltage) Ui in V according to IEC 60497-7-1

500

• Overvoltage category / insulating group

III / I

Connection capacity

• Flexible with end sleeve, with plastic sleeve in mm²

0,25 ... 2,5

• Flexible with end sleeve, without plastic sleeve in mm²

0,25 ... 2,5

• Flexible with two-wire connection end sleeve, with plastic sleeve in mm²

0,5 ... 1,5

• rigid in mm²

0,14 ... 4

Stripped length in mm

9

Molded plastic type

PA

• Flammability class according to UL 94

V0

Approval data (UL/CUL and CSA)

• Rated voltage / rated current / conductor sizes

• UL/CUL: in V/A / AWG

-- / -- / --

• CSA: in V/A / AWG

-- / -- / --
