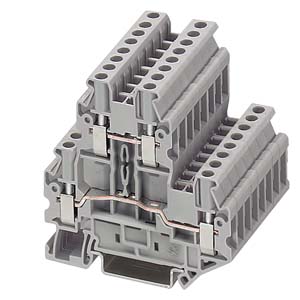

8WH Two-Tier Terminals

Разделы

ENG: 8WH Two-Tier Terminals

The compact 8WH two-tier terminal is available in the nominal cross-sections 2.5 and 4 mm2. With the potentials routed in a 5.2 mm or 6.2 mm grid through two tiers, the compact two-tier terminals require 50 % less space in the control cabinet. Two integral bridge slots are also available here and two facilities for large inscriptions on all terminals.

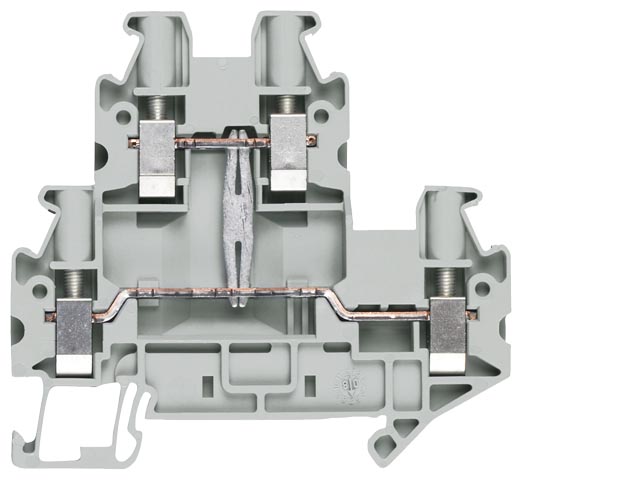

With 8WH1 025 two-tier terminals the upper and lower level are connected.

Floor transfer on the 8WH two-tier terminals allows for open access to the lower levels on full wiring. Spacer plates allow all to compensate for floor transfers in case other terminals are mounted.



Version

Order No.

Terminal size 2.5 mm²



8WH1 020-0AF00

8WH1 025-0AF00

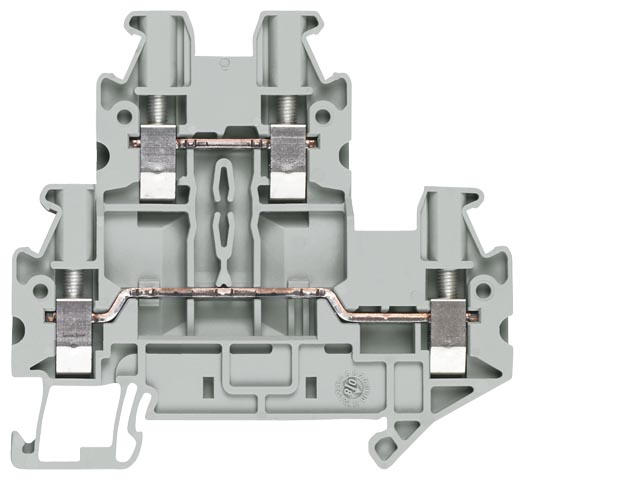

Two-tier terminals, terminal size 2.5 mm²

  • CURUS
  • CSA
  • Terminal width 5.2 mm
  • I max = 28 A
  • U max = 500 V
  • AWG 26-12
  • Connection capacity, one conductor
  • rigid 0.14... 4 mm²
  • Flexible 0.14... 4 mm²
  • Connection capacity, two conductors
    • rigid 0.14... 1.5 mm²
  • Flexible 0.14... 1.5 mm²


Versions


  • Gray

  • Without equipotential bonding

8WH1020-0AF00
  • With equipotential bonding

8WH1025-0AF00
  • Blue

  • Without equipotential bonding

8WH1020-0AF01

Accessories

Section


  • Cover, for two-tier terminals, for terminal size 2.5 to 4 mm²

Accessories

8WH9000-1QA00
  • Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm²

dto.

8WH9160-0AA00
  • Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm²

dto.

8WH9070-6FA00

8WH1 020-0CF07

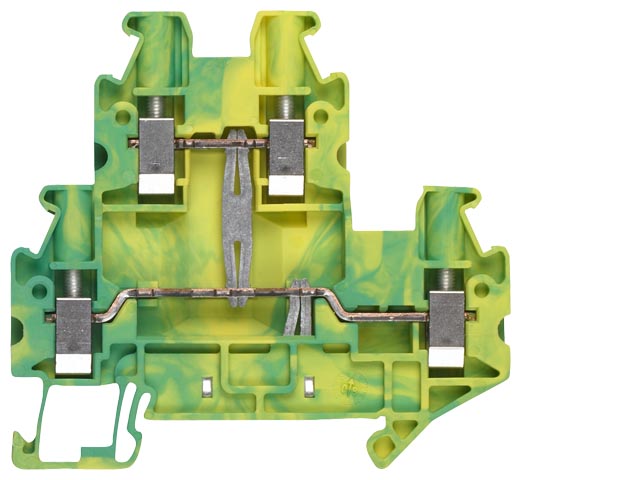

PE two-tier terminals, terminal size 2.5 mm²

  • CURUS
  • CSA
  • Terminal width 5.2 mm
  • AWG 26-12
  • Connection capacity, one conductor
  • rigid 0.14... 4 mm²
  • Flexible 0.14... 4 mm²
  • Connection capacity, two conductors
    • rigid 0.14... 1.5 mm²
  • Flexible 0.14... 1.5 mm²
  • Green-yellow

8WH1020-0CF07

Accessories

Section


  • Cover, for two-tier terminals, for terminal size 2.5 to 4 mm²

Accessories

8WH9000-1QA00
  • Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm²

dto.

8WH9160-0AA00
  • Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm²

dto.

8WH9070-6FA00

Terminal size 4 mm²



8WH1 020-0AG00

Two-tier terminals, terminal size 4 mm²

  • CURUS
  • CSA
  • Terminal width 6.2 mm
  • I max = 36 A
  • U max = 800 V
  • AWG 26-10
  • Connection capacity, one conductor
  • rigid 0.14... 6 mm²
  • Flexible 0.14... 6 mm²
  • Connection capacity, two conductors
    • rigid 0.14... 1.5 mm²
  • Flexible 0.14... 1.5 mm²


Versions


  • Gray

  • Without equipotential bonding

8WH1020-0AG00
  • With equipotential bonding

8WH1025-0AG00
  • Blue

  • Without equipotential bonding

8WH1020-0AG01

Accessories

Section


  • Cover, for two-tier terminals, for terminal size 2.5 to 4 mm²

Accessories

8WH9000-1QA00
  • Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm²

dto.

8WH9160-0AA00
  • Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm²

dto.

8WH9070-6FA00

8WH1 020-0CG07

PE two-tier terminals, terminal size 4 mm²

  • CURUS
  • CSA
  • Terminal width 6.2 mm
  • AWG 26-10
  • Connection capacity, one conductor
  • rigid 0.14... 6 mm²
  • Flexible 0.14... 6 mm²
  • Connection capacity, two conductors
    • rigid 0.14... 1.5 mm²
  • Flexible 0.14... 1.5 mm²
  • Green-yellow

8WH1020-0CG07

Accessories

Section


  • Cover, for two-tier terminals, for terminal size 2.5 to 4 mm²

Accessories

8WH9000-1QA00
  • Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm²

dto.

8WH9160-0AA00
  • Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm²

dto.

8WH9070-6FA00

Accessories



8WH9 000-1QA00

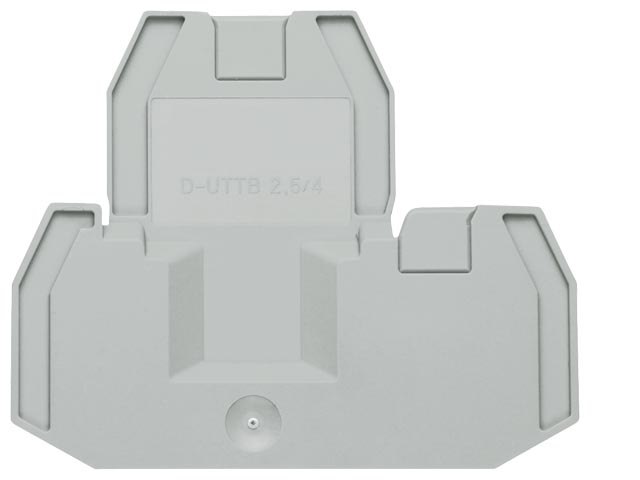

Cover, for two-tier terminals, for terminal size 2.5 to 4 mm²

  • Width 2.2 mm
  • Gray

8WH9000-1QA00

8WH9 160-0AA00

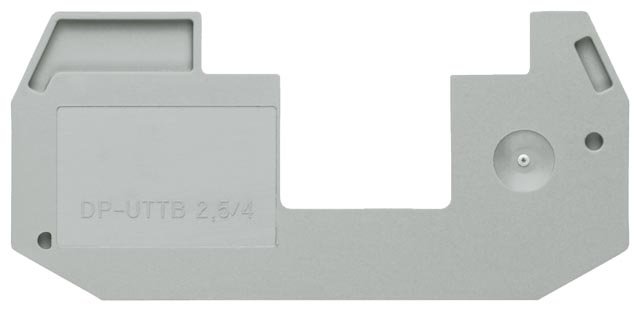

Spacer plates, for two-tier terminals, for terminal size 2.5 to 4 mm²

  • compensates for floor transfers in case other terminals are mounted.
  • 2.5 mm thick.
  • Gray

8WH9160-0AA00

8WH9 070-6FA00

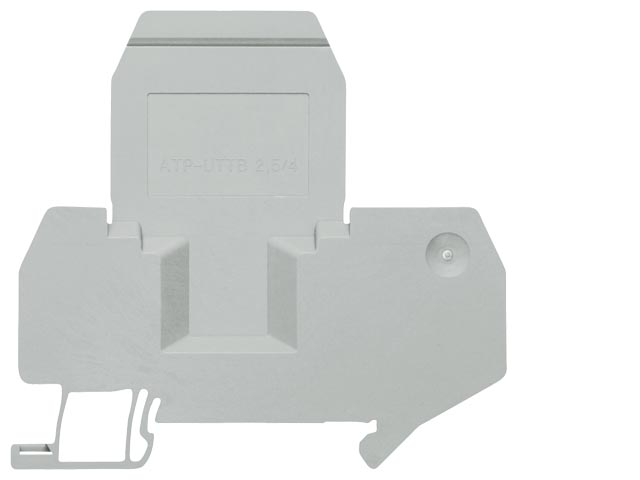

Compartment partition, for two-tier terminals for terminal size 2.5 to 4 mm²

  • for visual and electrical separation of terminal groups
  • 2 mm thick.
  • Gray

8WH9070-6FA00




Технические данные

ENG: 8WH Two-Tier Terminals


8WH1 020-0AF008WH1 020-0AF01

8WH1 020-0AG008WH1 020-0AG01

8WH1 020-0CF07

8WH1 020-0CG07

Dimensions


  • Width / Length / Cover width in mm

5,2 / 69,9 / 2,2

6,2 / 69,9 / 2,2

5,2 / 69,9 / 2,2

6,2 / 69,9 / 2,2
  • Height (NS 35/7,5 / NS 35/15) in mm

65 / 72,5



Technical specifications according to IEC/ DIN VDE


  • Max. load current in A / cross-section in mm²

28 / 4

36 / 6

-- / 4

-- / 6
  • Rated impulse (withstand) voltage in kV / pollution degree

6 kV/3

8kV/3


  • Rated insulation voltage (working voltage) Ui in V according to IEC 60497-7-1

500

800

--


  • Overvoltage category / insulating group

III / I



Connection capacity


  • Flexible with end sleeve, with plastic sleeve in mm²

0,25 ... 2,5

0,25 ... 4

0,25 ... 2,5

0,25 ... 4
  • Flexible with end sleeve, without plastic sleeve in mm²

0,25 ... 2,5

0,25 ... 4

0,25 ... 2,5

0,25 ... 4
  • Flexible with two-wire connection end sleeve, with plastic sleeve in mm²

0,5 ... 1,5

0,5 ... 2,5

0,5 ... 1,5

0,5 ... 2,5
  • rigid in mm²

0,14 ... 4

0,14 ... 6

0,14 ... 4

0,14 ... 6

Stripped length in mm

9



Molded plastic type

PA


  • Flammability class according to UL 94

V0



Approval data (UL/CUL and CSA)


  • Rated voltage / rated current / conductor sizes

  • UL/CUL: in V/A / AWG

600 / 20 / 26-12

600 / 30/ 26-12

-- / -- / 26-12

-- / -- / 26-10
  • CSA: in V/A / AWG

-- / -- / --




8WH1 025-0AF00

8WH1 025-0AG00

Dimensions


  • Width / Length / Cover width in mm

6,2 / 69,9 / 2,2


  • Height (NS 35/7,5 / NS 35/15) in mm

65 / 72,5



Technical specifications according to IEC/ DIN VDE


  • Max. load current in A / cross-section in mm²

28 / 4

36 / 6
  • Rated impulse (withstand) voltage in kV / pollution degree

8kV/3

8kV/3
  • Rated insulation voltage (working voltage) Ui in V according to IEC 60497-7-1

500


  • Overvoltage category / insulating group

III / I



Connection capacity


  • Flexible with end sleeve, with plastic sleeve in mm²

0,25 ... 2,5

0,25 ... 4
  • Flexible with end sleeve, without plastic sleeve in mm²

0,25 ... 2,5

0,25 ... 4
  • Flexible with two-wire connection end sleeve, with plastic sleeve in mm²

0,5 ... 1,5

0,5 ... 2,5
  • rigid in mm²

0,14 ... 4

0,14 ... 6

Stripped length in mm

9



Molded plastic type

PA


  • Flammability class according to UL 94

V0



Approval data (UL/CUL and CSA)


  • Rated voltage / rated current / conductor sizes

  • UL/CUL: in V/A / AWG

600 / 20 / 26-12

600 / 30 / 26-10
  • CSA: in V/A / AWG

-- / -- / --
