Quantity

6 input channels

Sampling rate

100 ms (with RTD/TC: 500 ms)

Measured-value memory

Measured value, mean value, min./max.

Input variables

Voltages (mV, V, mA), thermocouple, resistance thermometer (current via external shunt)

Resolution

16 bits (0.0015%)

Input impedance

Current loop resistance (DC): 10 Ω ± 5% (external)
All others: 1 MΩ

Source resistance

Resistance thermometer:
max. 40 Ω per conductor

Insulation resistance

> 9.9 MΩ between any terminal and ground terminal

Input filter

Simple low-pass filter, adjustable by software between 1 and 15 s

Electrical isolation

Common-mode: 250 V AC
Series-mode: 250 V AC

Linear scaling

-999999 to +999999
Scale factors from 1 to 9999;
automatic positioning of decimal point or fixed setting.

Freely-definable technical dimensions (5 characters)

Logarithmic scaling

1 to 9 decades

Square-root extraction

For all input modes

Recording

Types

Measured value, mean value, min./max.

Interval modes

Continuous, event and fuzzy

Interval

100/500 ms to 4 days selectable per channel

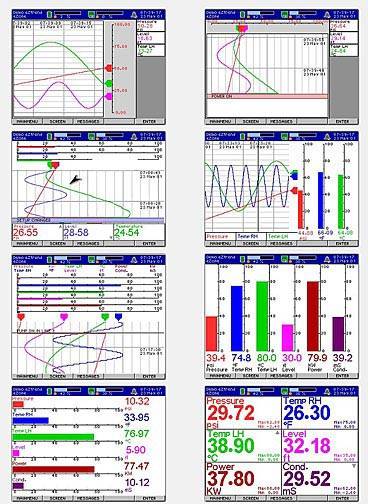

Display

STN QVGA

Size

5" (12.7 cm) diagonal, color

Resolution

QVGA (320 x 240 pixels)

Refresh rate

Values are updated every 250 ms

Conditions for use

Installation conditions

Mounting

Vertical panel mounting, max. ± 20° out of vertical;
panel thickness: 2 ... 20 mm

Ambient conditions

Permissible ambient temperature

• Operation

15 ... 40 °C

• Storage

-10 ... +60 °C

Relative humidity

10 ... 90% (no condensation)

Vibration

0 ... 70 Hz, 0.1 g

Shock

1 g/30 ms

Degree of protection of housing (front)

IP54
Terminals IP20

Design

Weight

2.5 kg

Materials

• Housing

Galvanized sheet-steel

• Front frame

Unbreakable polycarbonate plastic with scratchproof window

Dimensions (H x W x D) in mm

144 x 144 x 224

Recommendation: provide additional 30 mm for mains cable and signal plug.

Power supply

Supply voltage

90 ... 250 V AC
24 V DC (18 ... 30 V)

Line frequency

47 ... 64 Hz

Power consumption

Max. 20 VA

Safety and EMC standards

Safety standard

Corresponds to EN 61 010-1 (2001)

Noise immunity

Corresponds to EN 61 326-1 (1997)

Overvoltage protection

Category II: EN 61 010-1

EC declaration of conformity

No. 3540.000
CE marking: 07/03
Compliance with following directives: 89/336/EEC, 73/23/EEC

Measured variables and measuring range limits

Thermocouples

Temperature range

• B

0 ... 600 °C
600 ... 1750 °C

• C (W5)

0 ... 2300 °C

• E

-200 ... +1000 °C

• J

-200 ... 0 °C
0 ... 1190 °C

• K

-200 ... 0 °C
0 ... 1000 °C
1000 ... 1350 °C

• L

-200 ... +100 °C
100 ... 900 °C

• N (Nicrosil Nisil)

-200 ... 0 °C
0 ... 1300 °C

• R

0 ... 300 °C
300 ... 1750 °C

• S

0 ... 300 °C
300 ... 1750 °C

• T

-200 ... 0 °C
0 ... 400 °C

• W

1000 ... 1800 °C
1800 ... 2300 °C

• Chromel/Copel

-50 ... +600 °C

Resistance thermometers

Temperature range

• Pt100, 100 Ω

-200 ... +650 °C

• Pt200, 200 Ω

-200 ... +180 °C

• Ni120

-80 ... +240 °C

Measuring range limits

Voltage input

± 100 mV; ± 200 mV; ± 1 V; ± 10 V

Current input

± 10 mA; ± 20 mA
with external 10 Ω shunt
The accuracy depends on the used resistor, e.g. 0.1%.
