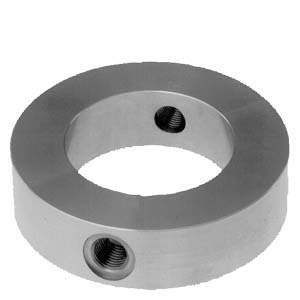

ENG: Flushing rings Flushing ring
Flushing rings are required for flange-mounted and sandwich-type remote seals (Order No. 7MF4900 ... 7MF4923) if the danger exists that the process conditions and the geometry of the connection could cause the medium to form deposits or blockages.
The flushing ring is clamped between the process flange and the remote seal.
Deposits can be flushed away from the diaphragm through the holes in the side, or the pressure volume can be vented. Different nominal diameters and forms permit adaptation to the respective process flange.
Process connection
For flanges to EN and ASME:DN 50, 80, 100, 125; PN 16 ... 100 orDN 2 inch, 3 inch, 4 inch, 5 inch; Class 150 ... 600
Standard design
Material: CrNi-Stahl, mat. No. 1.4404/316LSealing faces and flushing holes: See Ordering data
Дизайн
| | Заказные данные |
ENG: Flushing rings

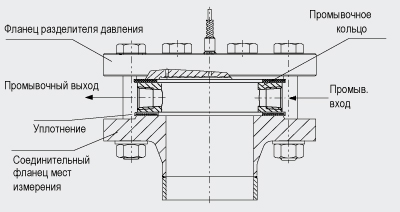

Installation example
Технические данные
| | Заказные данные |
ENG: Flushing rings | Flushing ring for remote seals of sandwich and flange design | |
|---|---|
| Nominal diameter | Nominal pressure |
| PN 16 ... PN 100 |
| PN 16 ... PN 100 |
| PN 16 ... PN 100 |
| PN 16 ... PN 100 |
| Class 150 ... class 600 |
| Class 150 ... class 600 |
| Class 150 ... class 600 |
| Class 150 ... class 600 |
| Sealing face | |
| Form B1 |
| Form B2 | |
| Form D/Form D | |
| Form C/Form C | |
| Form C/Form C | |
| Form E | |
| Form F | |
| RF 125 ... 250 AA |
| RFSF | |
| RJT ring groove | |
| Flushing holes (2 off), female thread: |
|
| |
| |
| |
| Material | Stainless steel 1.4404/316L |
Чертеж
| | Заказные данные |
ENG: Flushing rings
Connection to EN 1092-1
| DN | PN | d4 | di | h | Weight |
|---|---|---|---|---|---|
| (mm) | (bar) | (mm) | (mm) | (mm) | (kg) |
| 50 | 16 ... 100 | 102 | 62 | 30 | 1.10 |
| 80 | 16 ... 100 | 138 | 92 | 30 | 1.90 |
| 100 | 16 ... 100 | 162 | 92 | 30 | 3.15 |
| 125 | 16 ... 100 | 188 | 126 | 30 | 3.50 |
Connection to ASME B 16.5
| DN | Class | d4 | di | h | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|
| inch | mm | (inch) | mm | (inch) | mm | (inch) | kg | (lb) | |
| 2 | 150 ... 600 | 92 | (3.62) | 62 | (2.44) | 30 | (1.18) | 0.60 | (1.32) |
| 3 | 150 ... 600 | 127 | (5) | 92 | (3.62) | 30 | (1.18) | 1.05 | (2.31) |
| 4 | 150 ... 600 | 157 | (6.18) | 92 | (3.62) | 30 | (1.18) | 2.85 | (6.28) |
| 5 | 150 ... 600 | 185.5 | (7.3) | 126 | (4.96) | 30 | (1.18) | 3.30 | (7.28) |

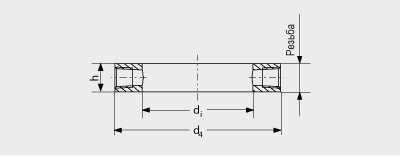

Flushing ring, dimension drawing
Заказные данные
| | Заказные данные |
Цена на сайте указана розничная в ЕВРО без учета НДС.Для уточнения цены и размера предоставляемой скидки - звоните или присылайте заявки
| Заказной номер | PG | Описание продукта | Цена |
| 7MF4925-..... | 808 | 7MF4925 - Промывочное кольцо для мембранных разделителей давления, | 0.00 |
