Коммутаторы SCALANCE X-300 Switches of the SCALANCE X‑300 product line in the standard version
Electrical and/or optical line, star or ring structures can be implemented with the switches of the SCALANCE X‑300 product line. Switches with Fast Ethernet and/or Gigabit Ethernet ports are available for this purpose.
To increase network availability, as many as 50 linear cascaded switches be configured into a ring (Ethernet with fast media redundancy). All switches of the SCALANCE X‑300 product line can be used as redundancy managers in the ring. As a redundancy manager, a SCALANCE X‑300 switch monitors the SCALANCE X switches connected via its ring ports; it switches bumpless to the substitute route on failure of a transmission route or a switch in the ring. Two rings can also be redundantly linked via the standby function of the SCALANCE X-300 switches.
Several nodes or subnets can be electrically or optically connected with each other by means of a SCALANCE X-300 switch as star point in a star topology.
The switches of the SCALANCE X‑300 product line are available in different designs:
- Compact design
- Standard version X‑300
- Partially modular version X‑300 M
- Rack design: Modular rack for installation in 19" control cabinets
- Standard version XR‑300 M
- PoE version XR‑300 M PoE (Power over Ethernet)
- EEC version XR‑300 M EEC (Enhanced Environmental Conditions)
Область применения
Коммутаторы SCALANCE X-300

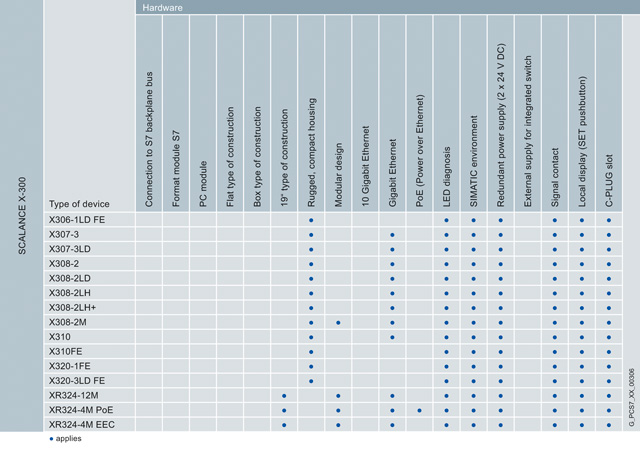

Functional overview of SCALANCE X-300, hardware

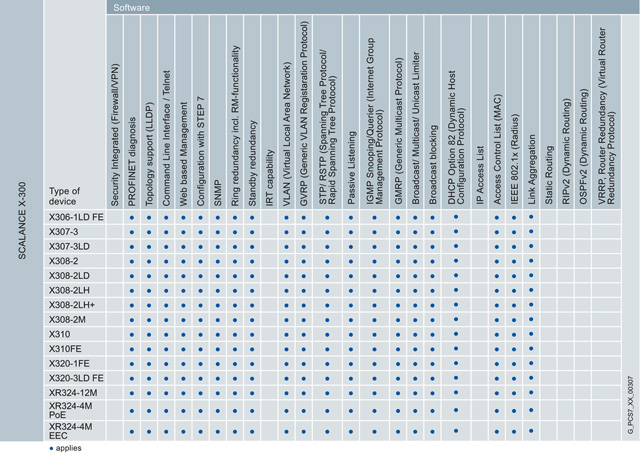

Functional overview of SCALANCE X-300, software
Дизайн

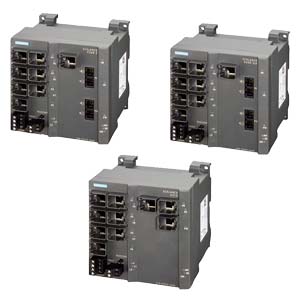

Коммутаторы SCALANCE X-300 Compact design X-300, standard version
Fast Ethernet and Gigabit Ethernet ports
- SCALANCE X310
- 3 electrical Gigabit Ethernet RJ45 ports (1000BaseTX)
- 7 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
- SCALANCE X308-2
- 2 optical Gigabit Ethernet SC ports for glass multi-mode FOC (1000BaseSX) up to 750 m
- 1 electrical Gigabit Ethernet RJ45 port (1000BaseTX)
- 7 electrical Fast Ethernet RJ45 ports (10/100BaseTX)

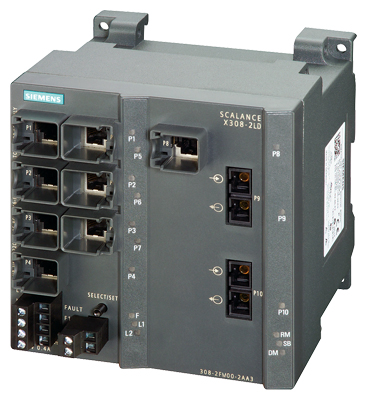

- SCALANCE X308-2LD
- 2 optical Gigabit Ethernet SC ports for glass single-mode FOC (1000BaseLX) up to 10 km
- 1 electrical Gigabit Ethernet RJ45 port (1000BaseTX)
- 7 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
- SCALANCE X308-2LH
- 2 optical Gigabit Ethernet SC ports for glass single-mode FOC (1000BaseLX) up to 40 km
- 1 electrical Gigabit Ethernet RJ45 port (1000BaseTX)
- 7 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
- SCALANCE X308-2LH+
- 2 optical Gigabit Ethernet SC ports for glass single-mode FOC (1000BaseLX) up to 70 km
- 1 electrical Gigabit Ethernet RJ45 port (1000BaseTX)
- 7 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
- SCALANCE X307-3
- 3 optical Gigabit Ethernet SC ports for glass multi-mode FOC (1000BaseSX) up to 750 m
- 7 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
- SCALANCE X307-3LD
- 3 optical Gigabit Ethernet SC ports for glass single-mode FOC (1000BaseLX) up to 10 km
- 7 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
Fast Ethernet ports
- SCALANCE X310FE
- 10 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
- SCALANCE X306-1LD FE
- 6 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
- 1 optical Fast Ethernet SC port (100BaseFX) for glass single-mode FOC up to 26 km
- SCALANCE X320-1FE
- 20 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
- 1 optical Fast Ethernet SC port (100BaseFX) for glass multi-mode FOC up to 5 km
- SCALANCE X320-3LD FE
- 20 electrical Fast Ethernet RJ45 ports (10/100BaseTX)
- 1 optical Fast Ethernet SC port (100BaseFX) for glass multi-mode FOC up to 5 km
- 2 optical Fast Ethernet SC ports (100BaseFX) for glass single-mode FOC up to 26 km
Compact design X-300, partially modular version
Gigabit Ethernet ports
- SCALANCE X308-2M
- 4 electrical Gigabit Ethernet RJ45 ports (1000BaseTX)
- 2 slots for 2-port media modules 10/100/1000 Mbit/s, electrical or optical

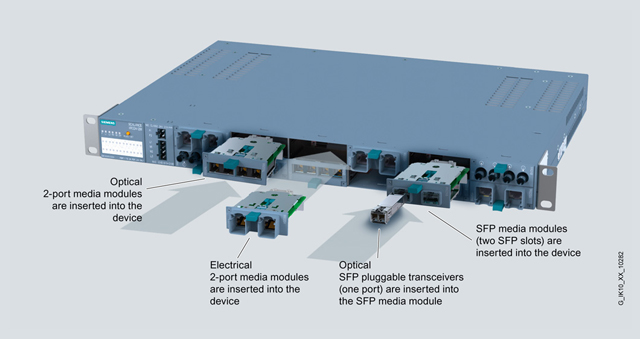

Rack design (modular) XR-300, standard version
The fully modular SCALANCE XR-300 standard basic device is equipped with 12 slots for 2‑port media modules (electrical or optical):
- SCALANCE XR324-12M (power supply connection and data cable outlet at front/back)with power supply unit 1 x 24V DC or 1 x 110 to 230V AC
- 12 slots for 2-port media modules 10/100/1000 Mbit/s, electrical or optical
Rack design (modular) XR-300, PoE version
The partially modular SCALANCE XR-300 PoE basic device has 16 integrated electrical RJ45 ports (10/100/1000 Mbit/s), eight of which are PoE capable. In addition, it has four slots for expansion with 2‑port media modules (electrical or optical):
- SCALANCE XR324-4M PoE (power supply connection and data cable outlet at front/back)with power supply unit 1 x 24V DC
- 16 electrical Gigabit Ethernet RJ45 ports (1000BaseTX)
- 4 slots for 2-port media modules 10/100/1000 Mbit/s, electrical or optical
Rack design (modular) XR-300, EEC version
The partially modular SCALANCE XR-300 EEC basic device has 16 integrated electrical RJ45 ports (10/100/1000 Mbit/s), as well as four slots for 2‑port media modules (electrical or optical).
- SCALANCE XR324-4M EEC (data cable outlet at front/back)with 24V DC power supply or 100 to 240V AC/60 to 250V DC, each single (1 x) or redundant (2 x)
- 16 electrical Gigabit Ethernet RJ45 ports (1000BaseTX)
- 4 slots for 2-port media modules 10/100/1000 Mbit/s, electrical or optical
Summary of interfaces
| Module type | Integrated ports, type and number | Number of media module ports (Port types, see table Overview of media modules) | |||
|---|---|---|---|---|---|
| Gigabit Ethernet 1000 Mbit/s | Fast Ethernet 100 Mbit/s | ||||
| Electrical (TP) | Optical (FO) | Electrical (TP) | Optical (FO) | ||
| RJ45 socket | SC socket | RJ45 socket | SC socket | ||
| X-300 compact design | |||||
| X320-1FE | – | – | 20 | 1 (multi-mode) for up to 5 km | – |
| X320-3LD FE | – | – | 20 | 1 (multi-mode) for up to 5 kmand 2 (single-mode) for up to 26 km | – |
| X310 | 3 | – | 7 | – | – |
| X310FE | – | – | 10 | – | – |
| X308-2 | 1 | 2 (multi-mode) for up to 750 m | 7 | – | – |
| X308-2LD | 1 | 2 (singlemode) for up to 10 km | 7 | – | – |
| X308-2LH | 1 | 2 (singlemode) for up to 40 km | 7 | – | – |
| X308-2LH+ | 1 | 2 (singlemode) for up to 70 km | 7 | – | – |
| X307-3 | – | 3 (multi-mode) for up to 750 m | 7 | – | – |
| X307-3LD | – | 3 (singlemode) for up to 10 km | 7 | – | – |
| X-306-1LD FE | – | – | 6 | 1 (singlemode) for up to 26 km | – |
| X-308-2M | 4 | – | – | – | 4 (2 x 2) |
| Rack design XR-300 | |||||
| XR324-12M | – | – | – | – | 24 (12 x 2) |
| XR324-4M PoE | 16 (including 8 PoE) | – | – | – | 8 (4 x 2) |
| XR324-4M EEC | 16 | – | – | – | 8 (4 x 2) |
Network configuration
When configuring the network, it is necessary to observe the following boundary conditions:
Network configuration X-300 compact design
- Maximum line length between two modules for multi-mode fiber-optic conductors:
- 5 km at 100 Mbit/s
- 750 m at 1 Gbit/s
- Maximum line length between two modules for single-mode fiber-optic conductors:
- 26 km at 100 Mbit/s
- 10 to 70 km at 1 Gbit/s
- Maximum cable length of the TP cable between two SCALANCE X switches:
- Max. 100 m with IE FC cable 2x2 and IE FC RJ45 Plug 180
- Max. 100 m at 1 Gbit/s with IE FC Standard Cable 4x2 (90 m), IE FC RJ45 Modular Outlet and patch cable (10 m)
- Max. 10 m using patches with TP cord
Network configuration rack design XR-300
- Maximum line length between two modules for multi-mode fiber-optic conductors:
- 5 km at 100 Mbit/s
- 750 m at 1 Gbit/s
- Maximum line length between two modules for single-mode fiber-optic conductors:
- 26 km to 70 km at 100 Mbit/s
- 10 to 120 km at 1 Gbit/s
- Maximum cable length of the TP cable between two SCALANCE X switches:
- Max. 100 m with IE FC cable 2x2 and IE FC RJ45 Plug 180
- Max. 100 m at 1 Gbit/s with IE FC Standard Cable 4x2 (90 m), IE FC RJ45 Modular Outlet and patch cable (10 m)
- Max. 10 m using patches with TP cord
Features of the X-300 compact design
- Rugged metal enclosure of S7‑300 format, IP30 degree of protection, for installation in control cabinets
- Mounting possibilities: DIN rail, SIMATIC S7‑300 mounting rail, direct wall mounting
- Redundant 24V DC power supply via 4-pin terminal block
- Connection of the floating signaling contact via 2‑pin terminal block
- Device diagnostics by means of LEDs (power, port status and operating mode, supply voltage, signaling contact status, feedback mask specified condition, redundancy manager function, standby manager function)
- Cable length between two devices with electrical transmission per TP ports 10/100BaseTX with RJ45 sockets (automatic detection of data rate):
- Up to 100 m with IE FC cable and IE FC RJ45 plugs (see section "Passive network components" in this catalog or section "Cabling technology" in the section PROFINET/Industrial Ethernet of the catalog IK PI)
- Up to 10 m with TP cord (see section "Passive network components" in catalog IK PI)
- Cable length between two devices with electrical transmission via TP ports 1000BaseTX with RJ45 sockets (automatic detection of the data rate (10, 100 or 1000 Mbit/s), in accordance with cable type (see section "Passive network components" in this catalog or section "Cabling technology" in the section PROFINET/Industrial Ethernet of the catalog IK PI):
- Up to 100 m via IE FC cables 2x2 for 100 Mbit/s with IE FC RJ45 Plug 180
- Up to 100 m via IE FC cables 4x2 for 1000 Mbit/s with IE FC RJ45 modular outlet and patch cable TP cord
- Up to 100 m via IE FC cables 4x2 for 1000 Mbit/s with IE FC RJ45 Plug 4x2
- Cable length between two devices with optical transmission:
- Up to 750 m via 1000BaseSX ports (1 000 Mbit/s) and Industrial Ethernet glass multi-mode FOC (see section "Passive network components" in this catalog or subsection "Cabling technology" in the PROFINET/Industrial Ethernet section of the IK PI catalog)
- Up to 10 km via 1000BaseLX ports (1 000 Mbit/s) and Industrial Ethernet glass single-mode FOC (see section "Cabling technology" in the section PROFINET/Industrial Ethernet of the IK PI catalog)
- Up to 40 km via 1000BaseLX ports (1 000 Mbit/s) and Industrial Ethernet glass single-mode FOC (see section "Cabling technology" in the section PROFINET/Industrial Ethernet of the IK PI catalog)
- Up to 70 km via 1000BaseLX ports (1 000 Mbit/s) and Industrial Ethernet glass single-mode FOC (see section "Cabling technology" in the section PROFINET/Industrial Ethernet of the IK PI catalog)
- Switches identified LH/LH+ allow very large optical Gigabit rings:
- Network ranges up to 2 000 km (ring with max. 50 X308-2LH) or 3 500 km (ring with max. 50 X308-2LH+)
- Redundant ring coupling (standby redundancy) up to 40 km (X308-2LH) or 70 km (X-308-2LH+)
- Integrated redundancy manager for ring structures
- Integral standby function for redundant coupling of two rings
- The permissible ambient temperature during operation varies as follows:
- -40 to +70 °C (X308-2M)
- -10 to +60 °C (X308-2, X307-3)
- -40 to +60 °C (X310, X310 FE, X308‑2LD, X308‑2LH, X308‑2LH+, X307‑3LD, X306‑1LD FE, X320‑1FE, X320‑3LD FE)
Features of the XR-300 rack design

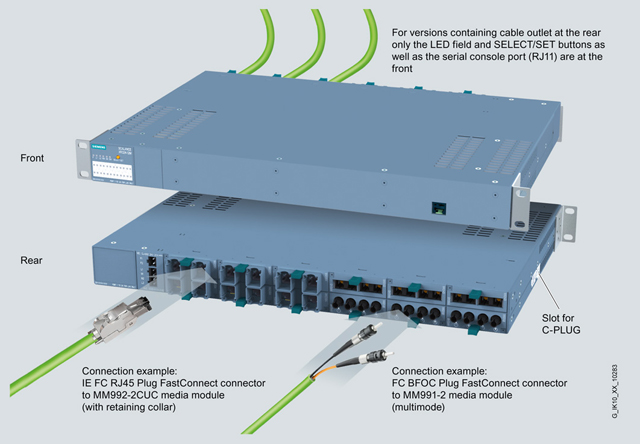

SCALANCE XR-300 with cable outlet at rear
Standard version
- Modular switch in a rugged metal enclosure, IP20 degree of protection, optimized for installation in 19" cabinets
- Up to 24 electrical and/or optical interfaces (10/100/1000 Mbit/s) in the form of up to 12 electrical and/or optical 2-port media modules (assignment of the basic device freely selectable)
- Outgoing feeder of the data cable on the front or rear
- Power supply unit in single design (1 x 24V DC or 1 x 110 to 230V AC)
- Redundant 24V DC power supply via 4-pin terminal block
- Infeed with 230V AC via 3-pin terminal block
- Connection of the floating signaling contact via 2‑pin terminal block
- SELECT/SET pushbutton for easy setting of the fault signaling contact on the device
- Device diagnostics by means of LEDs (power, port status and operating mode, supply voltage, signaling contact status, feedback mask specified condition, redundancy manager function, standby manager function)
- Console port (serial interface) for on-site configuration/diagnostics (RJ11 cable to RS232, 9-pin, included in product package)
- 12 slots for electrical or optical 2‑port media modules for multi-mode or single-mode connections; optical media modules in various connection systems
- Gigabit Ethernet (1000 Mbit/s) on all 24 ports; structure the ports in three groups of eight ports each (Gigabit Ethernet Blocking); Gigabit Ethernet full wire speed within a group
- All electrical Ethernet interfaces support 10/100/1000 Mbit/s, all optical Ethernet interfaces support 100 or 1000 Mbit/s
- Integrated redundancy manager for ring structures
- Integral standby function for redundant coupling of two rings
- Permissible ambient temperature during operation ‑40 to +70 °C
PoE version
- Modular switch in a rugged metal enclosure, IP20 degree of protection, optimized for installation in 19" cabinets
- Up to 24 electrical and/or optical interfaces (10/100/1000 Mbit/s) in the form of
- 16 integrated RJ45 ports, eight of which are PoE capable
- Up to four electrical and/or optical 2-port media modules
- Outgoing feeder of the data cable on the front or rear
- Power supply unit in single design (24V DC)
- Redundant 24V DC power supply via 4-pin terminal block
- Connection of the floating signaling contact via 2‑pin terminal block
- SELECT/SET pushbutton for easy setting of the fault signaling contact on the device
- Device diagnostics by means of LEDs (power, port status, data communication, supply voltage, signaling contact)
- Console port (serial interface) for on-site configuration/diagnostics (RJ11 cable to RS232, 9-pin, included in product package)
- 4 slots for electrical or optical 2‑port media modules for multi-mode or single-mode connections; optical media modules in various connection systems
- Gigabit Ethernet (1000 Mbit/s) on all 24 ports; structure the ports in three groups of eight ports each (Gigabit Ethernet Blocking); Gigabit Ethernet full wire speed within a group
- All electrical Ethernet interfaces support 10/100/1000 Mbit/s, all optical Ethernet interfaces support 100 or 1000 Mbit/s
- Integrated redundancy manager for ring structures
- Integral standby function for redundant coupling of two rings
- Permissible ambient temperature during operation ‑40 to +60 °C
EEC version
- Modular switch in a rugged metal enclosure, IP20 degree of protection, optimized for installation in 19" cabinets
- Up to 24 electrical and/or optical interfaces (10/100/1000 Mbit/s) in the form of
- 16 integrated RJ45 ports
- Up to four electrical and/or optical 2-port media modules
- Outgoing feeder of the data cable on the front or rear
- Power supply unit in single (1 x 24V DC or 1 x 100 to 240V AC/60 to 250V DC) or redundant version (2 x 24V DC or 2 x 100 to 240V AC/60 to 250V DC)
- Redundant 24V DC power supply via 4-pin terminal block
- Infeed with 230V AC via 3-pin terminal block
- Connection of the floating signaling contact via 2‑pin terminal block
- SELECT/SET pushbutton for easy setting of the fault signaling contact on the device
- Device diagnostics by means of LEDs (power, port status, data communication, supply voltage, signaling contact)
- Console port (serial interface) for on-site configuration/diagnostics (RJ11 cable to RS232, 9-pin, included in product package)
- 4 slots for electrical or optical 2‑port media modules for multi-mode or single-mode connections; optical media modules in various connection systems
- Gigabit Ethernet (1000 Mbit/s) on all 24 ports; structure the ports in three groups of eight ports each (Gigabit Ethernet Blocking); Gigabit Ethernet full wire speed within a group
- All electrical Ethernet interfaces support 10/100/1000 Mbit/s, all optical Ethernet interfaces support 100 or 1000 Mbit/s
- Integrated redundancy manager for ring structures
- Integral standby function for redundant coupling of two rings
- Permissible ambient temperature during operation ‑40 to +70 °C

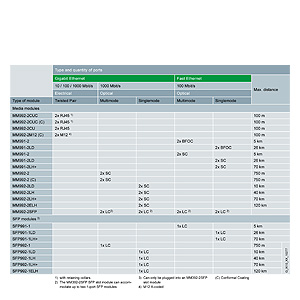

Media modules for SCALANCE X-300/XR-300
The use of 2-port media modules (electrical or optical) lets you:
- Expand the network by subsequent installation of additional media modules in free media module slots
- Change the cabling technology (e.g. conversion from copper to fiber-optic cables, or from multi-mode to single-mode FOC)
Product versions of media modules
Overview of media modules for SCALANCE X-300
Electrical media modules with 2 x 10/100/1000 Mbit/s RJ45 ports
- MM992-2CUC with retaining sleeve
- MM992-2CU without retaining sleeve
Optical media modules with 2 x 100 Mbit/s BFOC ports
- MM991-2 multi-mode, glass, up to 5 km
- MM991-2LD single-mode, glass, up to 26 km
Optical media modules with 2 x 100 Mbit/s SC ports
- MM991-2 multi-mode, glass, up to 5 km
- MM991-2LD single-mode, glass, up to 26 km
- MM991-2LH+ single-mode, glass, up to 70 km
Optical media modules with 2 x 1000 Mbit/s SC ports
- MM992-2 multi-mode, glass, up to 750 m
- MM992-2LD single-mode, glass, up to 10 km
- MM992-2LH single-mode, glass, up to 40 km
- MM992-2LH+ single-mode, glass, up to 70 km
- MM992-2ELH single-mode, glass, up to 120 km
Optical media modules with 2 x 100/1000 Mbit/s for SFP pluggable transceiver
- MM992-2SFP for SFP plug-in transceivers with 1 x 100 Mbit/s or 1 x 1000 Mbit/s multi-mode or single-mode, glass
SFP plug-in transceiver for MM992-2SFP media module
The following SFP plug-in transceivers (Small Form-factor Pluggable) can only be used together with the SFP media module MM992-2SFP.
Optical SFP pluggable transceivers with 1 x 100 Mbit/s LC port
- SFP991-1 multi-mode, glass, up to 5 km
- SFP991-1LD single-mode, glass, up to 26 km
- SFP991-1LH+ single-mode, glass, up to 70 km
Optical SFP pluggable transceivers with 1 x 1000 Mbit/s LC port
- SFP992-1 multi-mode, glass, up to 750 m
- SFP992-1LD single-mode, glass, up to 10 km
- SFP992-1LH single-mode, glass, up to 40 km
- SFP992-1LH+ single-mode, glass, up to 70 km
- SFP992-1ELH single-mode, glass, up to 120 km
Технические данные
Коммутаторы SCALANCE X-200 For detailed technical specifications of the SCALANCE X Industrial Ethernet switches, see Catalog IK PI, section "PROFINET/Industrial Ethernet", subsection "Industrial Ethernet switches/media converters".
Дальнейшая информация
Коммутаторы SCALANCE X-200 SIMATIC NET Selection Tool
The SIMATIC NET Selection Tool provides you with support for selecting the right Industrial Ethernet switches as well as during configuration of the modular versions:
Online version:
http://www.siemens.com/snst
Offline version:
http://www.siemens.com/snst-download
Заказные данные
Цена на сайте указана розничная в ЕВРО без учета НДС.Для уточнения цены и размера предоставляемой скидки - звоните или присылайте заявки
| Заказной номер | PG | Описание продукта | Цена |
| 6GK5306-1BF00-2AA3 | 5N3 | SCALANCE X306-1LD FE MANAGED IE SWITCH, 6 X 10/100 MBIT/S RJ45 PORTS, 1 X 100MBIT/S SC PORT SINGLEMODE LED-DIAGNOSTICS, FAULT SIGNAL CONTACT WITH SELECT/SET BUTTON, PROFINET-IO DEVICE, NETWORK- MANAGEMENT, INTEGRATED REDUNDANCY MANAGER, OFFICE FEATURES (RSTP, VLAN, IGMP,..) C-PLUG IN SCOPE OF SUPPLY | 1420.40 |
| 6GK5307-3BL00-2AA3 | 5N3 | SIMATIC NET, SCALANCE X307-3, УПРАВЛЯЕМЫЙ (PLUS) IE-КОММУТАТОР, 3 X 1000 МБИТ/С МУЛЬТИМОДОВЫХ SC И 7 X 10/100 МБИТ/С RJ45-ПОРТА, СВЕТОДИОДНАЯ ДИАГНОСТИКА, СИГНАЛЬНЫЙ КОНТАКТ ОШИБКИ С КНОПКОЙ ВЫБОРА/УСТАНОВКИ, PROFINET-IO УСРОЙСТВО, УПРАВЛЕНИЕ СЕТЬЮ, ВСТРО | 2279.00 |
| 6GK5307-3BM00-2AA3 | 5N3 | SIMATIC NET, SCALANCE X307-3LD, УПРАВЛЯЕМЫЙ (PLUS) IE-КОММУТАТОР, 3 X 1000 МБИТ/С ОДНОМОДОВЫХ SC И 7 X 10/100 МБИТ/С RJ45-ПОРТА, СВЕТОДИОДНАЯ ДИАГНОСТИКА, СИГНАЛЬНЫЙ КОНТАКТ ОШИБКИ С КНОПКОЙ ВЫБОРА/УСТАНОВКИ, PROFINET-IO УСРОЙСТВО, УПРАВЛЕНИЕ СЕТЬЮ, ВСТРО | 2946.80 |
| 6GK5308-2FL00-2AA3 | 5N3 | SIMATIC NET, SCALANCE X308-2, УПРАВЛЯЕМЫЙ PLUS IE КОММУТАТОР, 2 X 1000МБИТ/С МУЛЬТИМОДОВЫХ SC, 1 X 10/100/1000МБИТ/С И 7 X 10/100БИТ/С RJ45 ПОРТОВ, СВЕТОДИОДНАЯ ДИАГНОСТИКА, СИГНАЛЬНЫЙ КОНТАКТ ОШИБКИ С КНОПКОЙ НАСТРОЙКИ, РЕЗЕРВИРОВАННОЕ ПИТАНИЕ, PROFINET- | 2109.40 |
| 6GK5308-2FM00-2AA3 | 5N3 | SIMATIC NET, SCALANCE X308-2LD, УПРАВЛЯЕМЫЙ PLUS IE КОММУТАТОР, 2 X 1000МБИТ/С ОДНОМОДОВЫХ SC, 1 X 10/100/1000МБИТ/С И 7 X 10/100БИТ/С RJ45 ПОРТОВ, СВЕТОДИОДНАЯ ДИАГНОСТИКА, СИГНАЛЬНЫЙ КОНТАКТ ОШИБКИ С КНОПКОЙ НАСТРОЙКИ, РЕЗЕРВИРОВАННОЕ ПИТАНИЕ, PROFINET- | 2565.20 |
| 6GK5308-2FN00-2AA3 | 5N3 | SIMATIC NET, SCALANCE X308-2LH, УПРАВЛЯЕМЫЙ (PLUS) IE-КОММУТАТОР, 2 X 1000 МБИТ/С ОДНОМОДОВЫХ SC, 1 10/100/1000 МБИТ/С И 7 X 10/100 МБИТ/С RJ45-ПОРТА, СВЕТОДИОДНАЯ ДИАГНОСТИКА, СИГНАЛЬНЫЙ КОНТАКТ ОШИБКИ С КНОПКОЙ ВЫБОРА/УСТАНОВКИ, PROFINET-IO УСРОЙСТВО, У | 4229.40 |
| 6GK5308-2FP00-2AA3 | 5N3 | SIMATIC NET, SCALANCE X308-2LH+, УПРАВЛЯЕМЫЙ (PLUS) IE-КОММУТАТОР, 2 X 1000 МБИТ/С ОДНОМОДОВЫХ SC, 1 10/100/1000 МБИТ/С И 7 X 10/100 МБИТ/С RJ45-ПОРТА, СВЕТОДИОДНАЯ ДИАГНОСТИКА, СИГНАЛЬНЫЙ КОНТАКТ ОШИБКИ С КНОПКОЙ ВЫБОРА/УСТАНОВКИ, PROFINET-IO УСРОЙСТВО, | 5883.00 |
| 6GK5308-2GG00-2AA2 | 5N3 | SCALANCE X308-2M MANAGED IE SWITCH, COMPACT 4 X 10/100/1000MBIT/S RJ45 ELECTRICAL PORTS 2 X 100/1000MBIT/S FOR 2-PORT MEDIA MODULES, ELECTRICAL OR OPTICAL, LED-DIAGNOSTICS, FAULT SIGNAL CONTACT WITH SELECT/SET BUTTON, PROFINET-IO DEVICE, NETWORK- MANAGEMENT, INTEGRATED REDUNDANCY MANAGER OFFICE FEATURES (RSTP, VLAN, IGMP,..); C-PLUG IN THE SCOPE OF SUPPLY | 2035.20 |
| 6GK5310-0BA00-2AA3 | 5N3 | SIMATIC NET, SCALANCE X310FE, УПРАВЛЯЕМЫЙ PLUS IE КОММУТАТОР, 10 X 10/100БИТ/С RJ45 ПОРТОВ, СВЕТОДИОДНАЯ ДИАГНОСТИКА, СИГНАЛЬНЫЙ КОНТАКТ ОШИБКИ С КНОПКОЙ НАСТРОЙКИ, РЕЗЕРВИРОВАННОЕ ПИТАНИЕ, PROFINET-IO УСТРОЙСТВО, УПРАВЛЕНИЕ СЕТЬЮ, ВСТРОЕННЫЙ МЕНЕДЖЕР РЕЗ | 1155.40 |
| 6GK5310-0FA00-2AA3 | 5N3 | SIMATIC NET, SCALANCE X310, УПРАВЛЯЕМЫЙ PLUS IE КОММУТАТОР, 31 X 10/100/1000МБИТ/С И 7 X 10/100БИТ/С RJ45 ПОРТОВ, СВЕТОДИОДНАЯ ДИАГНОСТИКА, СИГНАЛЬНЫЙ КОНТАКТ ОШИБКИ С КНОПКОЙ НАСТРОЙКИ, РЕЗЕРВИРОВАННОЕ ПИТАНИЕ, PROFINET-IO УСТРОЙСТВО, УПРАВЛЕНИЕ СЕТЬЮ, В | 1823.20 |
| 6GK5320-1BD00-2AA3 | 5N3 | SCALANCE X320-1FE MANAGED IE SWITCH, 20 X 10/100 MBIT/S RJ45 PORTS, 1 X 100MBIT/S SC PORT MULTIMODE LED-DIAGNOSTICS, FAULT SIGNAL CONTACT WITH SELECT SET BUTTON, PROFINET-IO DEVICE, NETWORK- MANAGEMENT, INTEGRATED REDUNDANCY MANAGER OFFICE FEATURES (RSTP, VLAN, IGMP,..) C-PLUG IN THE SCOPE OF SUPPLY | 2469.80 |
| 6GK5320-3BF00-2AA3 | 5N3 | SCALANCE X320-3LDFE MANAGED IE SWITCH, 20 X 10/100 MBIT/S RJ45 PORTS, 1 X 100MBIT/S SC PORT MM 2 X 100MBIT/S SC PORT SM LED-DIAGNOSTICS, FAULT SIGNAL CONTACT WITH SELECT/ SET BUTTON, PROFINET-IO DEVICE, NETWORK- MANAGEMENT, INTEGRATED REDUNDANCY MANAGER OFFICE FEATURES (RSTP, VLAN, IGMP,..) C-PLUG IN THE SCOPE OF SUPPLY | 3720.60 |
| 6GK5324-0GG00-1AR2 | 5N3 | SCALANCE XR324-12M MANAGED IE SWITCH, 19 RACK, POWER SUPPLY 24V DC, PORTS FRONT SIDE, 12 X 100/1000MBIT/S F. 2-PORT- MEDIA MODULES, ELEKTRICAL ODER OPTICAL, LED-DIAGNOSTICS, FAULT SIGNAL CONTACT WITH SELECT/SET BUTTON, PROFINET-IO DEVICE, NETWORK- MANAGEMENT, INTEGRATED REDUNDANCY MANAGER, OFFICE FEATURES (RSTP, VLAN, IGMP,..); C-PLUG IN THE SCOPE OF SUPPLY | 1685.40 |
| 6GK5324-0GG00-1HR2 | 5N3 | SCALANCE XR324-12M MANAGED IE SWITCH, 19 RACK, POWER SUPPLY 24V DC, PORTS BACK SIDE, 12 X 100/1000MBIT/S F. 2-PORT- MEDIA MODULES, ELEKTRICAL ODER OPTICAL, LED-DIAGNOSTICS, FAULT SIGNAL CONTACT WITH SELECT/SET BUTTON, PROFINET-IO DEVICE, NETWORK- MANAGEMENT, INTEGRATED REDUNDANCY MANAGER OFFICE FEATURES (RSTP, VLAN, IGMP,..); C-PLUG IN THE SCOPE OF SUPPLY | 1685.40 |
| 6GK5324-0GG00-3AR2 | 5N3 | SCALANCE XR324-12M MANAGED IE SWITCH, 19 RACK; POWER SUPPLY 230V AC; PORTS FRONT SIDE; 12 X 100/1000MBIT/S F. 2-PORT- MEDIA MODULES, ELEKTRICAL ODER OPTICAL; LED-DIAGNOSTICS; FAULT SIGNAL CONTACT; WITH SELECT/SET BUTTON; PROFINET-IO DEVICE, NETWORK- MANAGEMENT, INTEGRATED REDUNDANCY MANAGER OFFICE FEATURES (RSTP, VLAN, IGMP,..); C-PLUG IN THE SCOPE OF SUPPLY | 1685.40 |
| 6GK5324-0GG00-3HR2 | 5N3 | SCALANCE XR324-12M MANAGED MANAGED IE SWITCH, 19 RACK; POWER SUPPLY 230V AC; PORTS BACK SIDE; 12 X 100/1000MBIT/S F. 2-PORT- MEDIA MODULES, ELEKTRICAL ODER OPTICAL; LED-DIAGNOSTICS; FAULT SIGNAL CONTACT; WITH SELECT/SET BUTTON; PROFINET-IO DEVICE, NETWORK- MANAGEMENT, INTEGRATED REDUNDANCY MANAGER OFFICE FEATURES (RSTP, VLAN, IGMP,..); C-PLUG IN THE SCOPE OF SUPPLY | 1685.40 |
| 6GK5324-4GG00-1ER2 | 5N3 | SCALANCE XR324-4M EEC; MANAGED IE SWITCH, 19 RACK; POWER SUPPLY WITH 1 X 24V DC; PORTS FRONT SIDE; 16 X 10/100/1000MBIT/S RJ45 PORTS ELECTRICAL; 4 X 100/1000MBIT/S FOR 2-PORT- MEDIA MODULES, ELECTRICAL OR OPTICAL; LED DIAGNOSTICS; FAULT SIGNAL CONTACT; WITH SELECT/SET-BUTTON; PROFINET-IO DEVICE, NETWORK- MANAGEMENT; INTEGRATED REDUNDANCY MANAGER | 3328.40 |
| 6GK5324-4GG00-1JR2 | 5N3 | SCALANCE XR324-4M EEC; MANAGED IE SWITCH, 19 RACK, POWER SUPPLY WITH 1 X 24V DC PORTS BACK SIDE, 16 X 10/100/1000MBIT/S RJ45 PORTS ELECTRICAL, 4 X 100/1000MBIT/S FOR 2-PORT- MEDIA MODULES, ELECTRICAL OR OPTICAL, LED DIAGNOSTICS, FAULT SIGNAL CONTACT WITH SELECT/SET-BUTTON, PROFINET-IO DEVICE, NETWORK- MANAGEMENT, INTEGRATED REDUNDANCY MANAGER | 3328.40 |
| 6GK5324-4GG00-2ER2 | 5N3 | SCALANCE XR324-4M EEC; MANAGED IE SWITCH, 19 RACK; POWER SUPPLY WITH 2 X 24V DC; PORTS FRONT SIDE; 16 X 10/100/1000MBIT/S RJ45 PORTS ELECTRICAL; 4 X 100/1000MBIT/S FOR 2-PORT- MEDIA MODULES, ELECTRICAL OR OPTICAL; LED DIAGNOSTICS; FAULT SIGNAL CONTACT; WITH SELECT/SET-BUTTON; PROFINET-IO DEVICE; NETWORK- MANAGEMENT; INTEGRATED REDUNDANCY MANAGER | 3551.00 |
| 6GK5324-4GG00-2JR2 | 5N3 | SCALANCE XR324-4M EEC; MANAGED IE SWITCH, 19 RACK, POWER SUPPLY WITH 2 X 24V DC PORTS BACK SIDE, 16 X 10/100/1000MBIT/S RJ45 PORTS ELECTRICAL, 4 X 100/1000MBIT/S FOR 2-PORT- MEDIA MODULES, ELECTRICAL OR OPTICAL, LED DIAGNOSTICS, FAULT SIGNAL CONTACT WITH SELECT/SET-BUTTON, PROFINET-IO DEVICE, NETWORK- MANAGEMENT, INTEGRATED REDUNDANCY MANAGER C-PLUG IN SCOPE OF SUPPLY | 3551.00 |
| 6GK5324-4GG00-3ER2 | 5N3 | SCALANCE XR324-4M EEC; MANAGED IE SWITCH, 19 RACK, POWER SUPPLY WITH 1 X 230V AC PORTS FRONT SIDE, 16 X 10/100/1000MBIT/S RJ45 PORTS ELECTRICAL, 4 X 100/1000MBIT/S FOR 2-PORT- MEDIA MODULES, ELECTRICAL OR OPTICAL, LED DIAGNOSTICS, FAULT SIGNAL CONTACT WITH SELECT/SET-BUTTON, PROFINET-IO DEVICE, NETWORK- MANAGEMENT, INTEGRATED REDUNDANCY MANAGER | 3328.40 |
| 6GK5324-4GG00-3JR2 | 5N3 | SCALANCE XR324-4M EEC; MANAGED IE SWITCH, 19 RACK, POWER SUPPLY WITH 1 X 230V AC PORTS BACK SIDE, 16 X 10/100/1000MBIT/S RJ45 PORTS ELECTRICAL, 4 X 100/1000MBIT/S FOR 2-PORT- MEDIA MODULES, ELECTRICAL OR OPTICAL, LED DIAGNOSTICS, FAULT SIGNAL CONTACT WITH SELECT/SET-BUTTON, PROFINET-IO DEVICE, NETWORK- MANAGEMENT, INTEGRATED REDUNDANCY MANAGER | 3328.40 |
| 6GK5324-4GG00-4ER2 | 5N3 | SCALANCE XR324-4M EEC; MANAGED IE SWITCH, 19 RACK, POWER SUPPLY WITH 2 X 230V AC PORTS FRONT SIDE, 16 X 10/100/1000MBIT/S RJ45 PORTS ELECTRICAL, 4 X 100/1000MBIT/S FOR 2-PORT- MEDIA MODULES, ELECTRICAL OR OPTICAL, LED DIAGNOSTICS, FAULT SIGNAL CONTACT WITH SELECT/SET-BUTTON, PROFINET-IO DEVICE, NETWORK- MANAGEMENT, INTEGRATED REDUNDANCY MANAGER | 3551.00 |
| 6GK5324-4GG00-4JR2 | 5N3 | SCALANCE XR324-4M EEC; MANAGED IE SWITCH, 19 RACK, POWER SUPPLY WITH 2 X 230V AC PORTS BACK SIDE, 16 X 10/100/1000MBIT/S RJ45 PORTS ELECTRICAL, 4 X 100/1000MBIT/S FOR 2-PORT- MEDIA MODULES, ELECTRICAL OR OPTICAL, LED DIAGNOSTICS, FAULT SIGNAL CONTACT WITH SELECT/SET-BUTTON, PROFINET-IO DEVICE, NETWORK- MANAGEMENT, INTEGRATED REDUNDANCY MANAGER | 3551.00 |
| 6GK5324-4QG00-1AR2 | 5N3 | SCALANCE XR324-4M POE; MANAGED IE SWITCH, 19 RACK; POWER SUPPLY DC 24V; PORTS FRONT SIDE; 8 X 10/100/1000MBIT/S FOR RJ45 PORTS ELECTRICAL WITH POE; 8 X 10/100/1000MBIT/S FOR RJ45 PORTS ELECTRICAL W/O POE; 4 X 10/100/1000MBIT/S 2-PORT MEDIA MODULES, ELECTRICAL OR OPTICAL; LED DIAGNOSIS; FAULT SIGNAL CONTACT; SELECT / SET BUTTON; PROFINET IO DEVICE; | 3784.20 |
| 6GK5324-4QG00-1HR2 | 5N3 | SCALANCE XR324-4M POE; MANAGED IE SWITCH, 19 RACK; POWER SUPPLY 24V DC; PORTS BACK SIDE; 8 X 10/100/1000MBIT/S FOR RJ45 PORTS ELECTRICAL WITH POE 8 X 10/100/1000MBIT/S FOR RJ45 PORTS ELECTRICAL W/O POE; 4 X 10/100/1000MBIT/S 2-PORT MEDIA MODULES, ELECTRICAL OR OPTICAL; LED DIAGNOSIS; FAULT SIGNAL CONTACT; SELECT / SET BUTTON; PROFINET IO DEVICE; | 3784.20 |
| 6GK5991-1AD00-8AA0 | 5N3 | SCALANCE X ACCESSORY, SFP991-1 1 X 100MBIT/S LC-PORT OPTICAL; MULTIMODE GLASS UP TO MAX. 3 KM | 195.04 |
| 6GK5991-1AE00-8AA0 | 5N3 | SCALANCE X ACCESSORY, SFP991-1LH+ 1 X 100MBIT/S LC-PORT OPTICAL SINGLEMODE GLASS UP TO MAX. 70 KM | 1971.60 |
| 6GK5991-1AF00-8AA0 | 5N3 | SCALANCE X ACCESSORY, SFP991-1LD 1 X 100MBIT/S LC-PORT OPTICAL; SINGLEMODE GLASS UP TO MAX. 26 KM | 411.28 |
| 6GK5991-2AB00-8AA0 | 5N3 | SCALANCE X ACCESSORY, MEDIA MODULE MM991-2, 2 X 100MBIT/S BFOC-PORTS OPTICAL; MULTIMODE GLASS UP TO MAX. 5 KM | 315.88 |
| 6GK5991-2AC00-8AA0 | 5N3 | SCALANCE X ACCESSORY, MEDIA MODULE MM991-2LD, 2 X 100MBIT/S BFOC-PORTS OPTICAL; SINGLEMODE GLASS UP TO MAX. 26 KM | 877.68 |
| 6GK5991-2AD00-8AA0 | 5N3 | SCALANCE X ACCESSORY, MEDIA MODULE MM991-2, 2 X 100MBIT/S SC-PORTS OPTICAL; MULTIMODE GLASS UP TO MAX. 3 KM | 315.88 |
| 6GK5991-2AE00-8AA0 | 5N3 | SCALANCE X ACCESSORY, MEDIA MODULE MM991-2LH+, 2 X 100MBIT/S SC-PORTS OPTICAL SINGLEMODE GLASS UP TO MAX. 70 KM | 4017.40 |
| 6GK5991-2AF00-8AA0 | 5N3 | SCALANCE X ACCESSORY, MEDIA MODULE MM991-2LD, 2 X 100MBIT/S SC-PORTS OPTICAL; SINGLEMODE GLASS UP TO MAX. 26 KM | 877.68 |
| 6GK5992-1AL00-8AA0 | 5N3 | SCALANCE X ACCESSORY, SFP992-1 1 X 1000MBIT/S LC-PORT, OPTICAL; MULTIMODE GLASS UP TO MAX. 750 M | 237.44 |
| 6GK5992-1AM00-8AA0 | 5N3 | SCALANCE X ACCESSORY, SFP992-1LD 1 X 1000MBIT/S LC-PORT, OPTICAL; SINGLEMODE GLASS UP TO MAX. 10 KM | 519.40 |
| 6GK5992-1AN00-8AA0 | 5N3 | SCALANCE X ACCESSORY, SFP992-1LH 1 X 1000MBIT/S LC-PORT, OPTICAL SINGLEMODE GLASS UP TO MAX. 40 KM | 1409.80 |
| 6GK5992-1AP00-8AA0 | 5N3 | SCALANCE X ACCESSORY, SFP992-1LH+ 1 X 1000MBIT/S LC-PORT, OPTICAL; SINGLEMODE GLASS UP TO MAX. 70 KM | 2183.60 |
| 6GK5992-1AQ00-8AA0 | 5N3 | SCALANCE X ACCESSORY, SFP992-1ELH 1 X 1000MBIT/S LC-PORT, OPTICAL SINGLEMODE GLASS UP TO MAX. 120 KM | 3572.20 |
| 6GK5992-2AL00-8AA0 | 5N3 | SCALANCE X ACCESSORY, MEDIA MODULE MM992-2, 2 X 1000MBIT/S SC-PORTS, OPTICAL; MULTIMODE GLASS UP TO MAX. 750 M | 540.60 |
| 6GK5992-2AM00-8AA0 | 5N3 | SCALANCE X ACCESSORY, MEDIA MODULE MM992-2LD, 2 X 1000MBIT/S SC-PORTS, OPTICAL; SINGLEMODE GLASS UP TO MAX. 10 KM | 1102.40 |
| 6GK5992-2AN00-8AA0 | 5N3 | SCALANCE X ACCESSORY, MEDIA MODULE MM992-2LH, 2 X 1000MBIT/S SC-PORTS, OPTICAL; SINGLEMODE GLASS UP TO MAX. 40KM | 2575.80 |
| 6GK5992-2AP00-8AA0 | 5N3 | SCALANCE X ACCESSORY, MEDIA MODULE MM992-2LH+, 2 X 1000MBIT/S SC-PORTS, OPTICAL; SINGLEMODE GLASS UP TO MAX. 70KM | 4473.20 |
| 6GK5992-2AQ00-8AA0 | 5N3 | SCALANCE X ACCESSORY, MEDIA MODULE MM992-2ELH, 2 X 1000MBIT/S SC-PORTS, OPTICAL; SINGLEMODE GLASS UP TO MAX. 120KM | 6179.80 |
| 6GK5992-2AS00-8AA0 | 5N3 | SCALANCE X ACCESSORY; MEDIA MODULE MM992-2SFP; 2 X 100/1000MBIT/S FOR SFP PLUG TRANSCEIVER | 179.14 |
| 6GK5992-2GA00-8AA0 | 5N3 | SCALANCE X ACCESSORY, MEDIA MODULE MM992-2CUC, 2 X 10/100/1000MBIT/S RJ45-PORTS, ELECTRICAL; WITH SLEEVE | 235.32 |
| 6GK5992-2SA00-8AA0 | 5N3 | SCALANCE X ACCESSORY, MEDIA MODULE MM992-2CU, 2 X 10/100/1000MBIT/S RJ45-PORTS, ELECTRICAL; WITHOUT SLEEVE | 203.52 |
Аксессуары
Цена на сайте указана розничная в ЕВРО без учета НДС.Для уточнения цены и размера предоставляемой скидки - звоните или присылайте заявки
| Заказной номер | PG | Описание продукта | Цена |
| 6AG1933-3BA00-2AA0 | 471 | SIPLUS БЛОК ПИТАНИЯ PS MODULAR 5A, РАБОЧАЯ ТЕМПЕРАТУРА -25... +60 ГРАД. ЦЕЛЬСИЯ, НА ОСНОВЕ 6EP1333-3BA00 | 252.28 |
| 6EP1331-5BA00 | 584 | SITOP PSU100C 24 V/0,6 A СТАБИЛИЗИРОВАННЫЙ БЛОК ПИТАНИЯ ВХОД: ~100-230 В ВЫХОД: =24 В/0,6 A | 37.10 |
| 6EP1332-5BA00 | 584 | SITOP PSU100C 24 V/2.5 A СТАБИЛИЗИРОВАННЫЙ БЛОК ПИТАНИЯ, ВХОД: ~120-230 В, ВЫХОД: =24 В/2.5 A | 62.54 |
| 6GK1900-1GL00-0AA0 | 5K2 | SIMATIC NET, FC FO BFOC КОМПЛЕКТ ДЛЯ ЗАЧИСТКИ КАБЕЛЯ ДЛЯ МОНТАЖА FC FO BFOC РАЗЪЁМОВ НА КАБЕЛЬ ПО МЕСТУ ДЛЯ ОПТИЧЕСКИХ FC КАБЕЛЕЙ | 3731.20 |
| 6GK1900-1LB00-0AC0 | 5K2 | SIMATIC NET, FC FO SC РАЗЪЁМ ДЛЯ МОНТАЖА НА КАБЕЛЬ ПО МЕСТУ ДЛЯ ОПТИЧЕСКИХ FC КАБЕЛЕЙ (62.5/200/230) УПАКОВКА: 10 ШТ. ДУПЛЕКСНЫХ СОЕДИНИТЕЛЕЙ + ОБТИРОЧНЫЙ МАТЕРИАЛ | 723.98 |
| 6GK1901-1BB10-2AA0 | 5K1 | SIMATIC NET IE FC RJ45 ШТЕКЕР, 180 RJ45, ШТЕКЕРНЫЙ СОЕДИНИТЕЛЬ С МЕТАЛ. КОРПУСОМ ДЛЯ ПРОМ. УСЛОВИЙ, ПРЕДНАЗНАЧЕН ДЛЯ БЫСТРОГО МОНТАЖА, 180 ГРАД. УГОЛ ВЫВОДА КАБЕЛЯ, 1 УПАКОВКА = 1 ШТ. | 16.85 |
| 6GK1901-1BB10-2AB0 | 5K1 | SIMATIC NET IE FC RJ45 ШТЕКЕР, 180 RJ45, ШТЕКЕРНЫЙ СОЕДИНИТЕЛЬ С МЕТАЛ. КОРПУСОМ ДЛЯ ПРОМ. УСЛОВИЙ, ПРЕДНАЗНАЧЕН ДЛЯ БЫСТРОГО МОНТАЖА, 180 ГРАД. УГОЛ ВЫВОДА КАБЕЛЯ, 1 УПАКОВКА = 10 ШТ. | 144.16 |
| 6GK1901-1BB10-2AE0 | 5K1 | SIMATIC NET IE FC RJ45 ШТЕКЕР, 180 RJ45, ШТЕКЕРНЫЙ СОЕДИНИТЕЛЬ С МЕТАЛ. КОРПУСОМ ДЛЯ ПРОМ. УСЛОВИЙ, ПРЕДНАЗНАЧЕН ДЛЯ БЫСТРОГО МОНТАЖА, 180 ГРАД. УГОЛ ВЫВОДА КАБЕЛЯ, 1 УПАКОВКА = 50 ШТ. | 545.90 |
| 6GK1901-1BB11-2AA0 | 5K1 | IE FC RJ45 PLUG 180 4X2, RJ45 СОЕДИНИТЕЛЬ-РОЗЕТКА (10/100/1000МБИТ/С) В ПРОЧНОМ МЕТАЛЛИЧЕСКОМ КОРПУСЕ, МЕТОД ПОДКЛЮЧЧЕНИЯ FC, ДЛЯ IE FC КАБЕЛЯ 4X2 (AWG24) ВЫХОД КАБЕЛЯ ПОД УГЛОМ 180 ГРАДУСОВ, 1 УПАКОВКА = 1 ШТУКА | 21.41 |
| 6GK1901-1BB11-2AB0 | 5K1 | IE FC RJ45 PLUG 180 4X2, RJ45 СОЕДИНИТЕЛЬ-РОЗЕТКА (10/100/1000МБИТ/С) В ПРОЧНОМ МЕТАЛЛИЧЕСКОМ КОРПУСЕ, МЕТОД ПОДКЛЮЧЧЕНИЯ FC, ДЛЯ IE FC КАБЕЛЯ 4X2 (AWG24) ВЫХОД КАБЕЛЯ ПОД УГЛОМ 180 ГРАДУСОВ, 1 УПАКОВКА = 10 ШТУК | 181.26 |
| 6GK1901-1BB11-2AE0 | 5K1 | IE FC RJ45 PLUG 180 4X2, RJ45 СОЕДИНИТЕЛЬ-РОЗЕТКА (10/100/1000МБИТ/С) В ПРОЧНОМ МЕТАЛЛИЧЕСКОМ КОРПУСЕ, МЕТОД ПОДКЛЮЧЧЕНИЯ FC, ДЛЯ IE FC КАБЕЛЯ 4X2 (AWG24) ВЫХОД КАБЕЛЯ ПОД УГЛОМ 180 ГРАДУСОВ, 1 УПАКОВКА = 50 ШТУК | 694.30 |
| 6GK1901-1BE00-0AA1 | 5K2 | SIMATIC NET IE FC RJ45 ОСНОВНОЙ МОДУЛЬ МОДУЛЬНОЙ РОЗЕТКИ, СО ВСТАВКОЙ 2FE ДЛЯ ПОДСОЕДИНЕНИЯ ДВУХ ИНТЕРФЕЙСОВ 100 МБИТ/С | 61.80 |
| 6GK1901-1BE00-0AA2 | 5K2 | SIMATIC NET IE FC RJ45 ОСНОВНОЙ МОДУЛЬ МОДУЛЬНОЙ РОЗЕТКИ, СО ВСТАВКОЙ 1GE ДЛЯ ПОДСОЕДИНЕНИЯ ОДНОГО ИНТЕРФЕЙСА 1000 МБИТ/С | 61.80 |
| 6GK1901-1GA00 | 5K2 | SIMATIC NET, ИНСТРУМЕНТ ДЛЯ БЫСТРОЙ РАЗДЕЛКИ СТАНДАРТНОГО INDUSTRIAL ETHERNET FASTCONNECT КАБЕЛЯ | 62.96 |
| 6XV1840-2AH10 | 5K1 | SIMATIC NET, FC СТАНДАРТНЫЙ IE TP КАБЕЛЬ ДЛЯ БЫСТРОГО МОНТАЖА (FC), ДЛЯ ПОДКЛ. К FC СОЕДИНИТЕЛЮ RJ45, 4-ЖИЛЬНЫЙ, ЭКРАНИРОВАННЫЙ, КАТЕГОРИЯ 5, ПОСТАВКА ПО МЕТРАЖУ ОТРЕЗКАМИ ДЛИНОЙ 20 ... 1000 M | 1.72 |
| 6XV1843-2R | 5K2 | SM FO ROBUST CABLE GP (4E9/125) OUTDOOR CABLE; WITH PROTECTION AGAIST RODENTS; SPLITTABLE; W/O CONNECTOR; SOLD BY THE METER; MIN. ORDER QUANTITY: 20 M, MAX. LENGTH 2000 M | 8.86 |
| 6XV1847-2A | 5K2 | SIMATIC NET, СТАНДАРТНЫЙ ОПТИЧЕСКИЙ КАБЕЛЬ ДЛЯ БЫСТРОГО МОНТАЖА (62.5/200/230), SСТАНДАРТНЫЙ, РАЗДЕЛЯЕМЫЙ, UL-СЕРТИФИКАЦИЯ, МАКС. ОТРЕЗОК 1000M, МИНИМАЛЬНАЯ ДЛИНА К ЗАКАЗУ: 20 М, ПРОДАЖА ПО МЕТРАЖУ | 7.36 |
| 6XV1870-2E | 5K1 | SIMATIC NET, ETHERNET FC СТАНДАРТНЫЙ ИНСТАЛЯЦИОННЫЙ КАБЕЛЬ; КАТЕГОРИИ 6 ДЛЯ СОЕДИНЕНИЯ FC RJ45 МОДУЛЬНОЙ РОЗЕТКИ, ПРОДАЁТСЯ В МЕТРАХ, МАКС. ПОСТАВКА 1000 M, МИН. ЗАКАЗНАЯ ДЛИНА: 20 M | 3.03 |
| 6XV1870-3QE50 | 5K1 | SIMATIC NET INDUSTRIAL ETHERNET TP КОРД RJ45/RJ45, КАТЕГОРИИ 6, TP КАБЕЛЬ 4X2, ПРЕДСОБРАННЫЙ С 2-МЯ RJ45 РАЗЪЁМАМИ, L = 0.5 M | 17.60 |
| 6XV1870-3QH10 | 5K1 | SIMATIC NET INDUSTRIAL ETHERNET TP КОРД RJ45/RJ45, КАТЕГОРИИ 6, TP КАБЕЛЬ 4X2, ПРЕДСОБРАННЫЙ С 2-МЯ RJ45 РАЗЪЁМАМИ, L = 1 M | 18.66 |
| 6XV1870-3QH20 | 5K1 | SIMATIC NET INDUSTRIAL ETHERNET TP КОРД RJ45/RJ45, КАТЕГОРИИ 6, TP КАБЕЛЬ 4X2, ПРЕДСОБРАННЫЙ С 2-МЯ RJ45 РАЗЪЁМАМИ, L = 2 M | 20.99 |
| 6XV1870-3QH60 | 5K1 | SIMATIC NET INDUSTRIAL ETHERNET TP КОРД RJ45/RJ45, КАТЕГОРИИ 6, TP КАБЕЛЬ 4X2, ПРЕДСОБРАННЫЙ С 2-МЯ RJ45 РАЗЪЁМАМИ, L = 6 M | 28.62 |
| 6XV1870-3QN10 | 5K1 | SIMATIC NET INDUSTRIAL ETHERNET TP КОРД RJ45/RJ45, КАТЕГОРИИ 6, TP КАБЕЛЬ 4X2, ПРЕДСОБРАННЫЙ С 2-МЯ RJ45 РАЗЪЁМАМИ, L = 10 M | 36.46 |
| 6XV1873-2A | 5K2 | SIMATIC NET, СТАНДАРТНЫЙ ОПТИЧЕСКИЙ КАБЕЛЬ (50/125), ОДОБРЕНИЕ UL, БЕЗ СОЕДИНИТЕЛЕЙ, ПОСТАВКА ПО МЕТРАЖУ ОТРЕЗКАМИ ОТ 20 ДО 1000 М | 3.78 |
| 6XV1873-6AN80 | 5K2 | SIEMENS SIMATIC NET СТЕКЛОВОЛОКОННЫЙ СТАНДАРТНЫЙ КАБЕЛЬ 50/125, СОБРАННЫЙ С 2X2 SC СОЕДИНИТЕЛЯМИ, РУКОВОДСТВО ПО УСТАНОВКЕ, ДЛИНА 80 M | 368.88 |
| 6XV1873-6AT10 | 5K2 | SIEMENS SIMATIC NET СТЕКЛОВОЛОКОННЫЙ СТАНДАРТНЫЙ КАБЕЛЬ 50/125, СОБРАННЫЙ С 2X2 SC СОЕДИНИТЕЛЯМИ, РУКОВОДСТВО ПО УСТАНОВКЕ, ДЛИНА 100 M | 430.36 |
| 6XV1873-6AT15 | 5K2 | SIEMENS SIMATIC NET СТЕКЛОВОЛОКОННЫЙ СТАНДАРТНЫЙ КАБЕЛЬ 50/125, СОБРАННЫЙ С 2X2 SC СОЕДИНИТЕЛЯМИ, РУКОВОДСТВО ПО УСТАНОВКЕ, ДЛИНА 150 M | 638.12 |
| 6XV1873-6AT20 | 5K2 | SIEMENS SIMATIC NET СТЕКЛОВОЛОКОННЫЙ СТАНДАРТНЫЙ КАБЕЛЬ 50/125, СОБРАННЫЙ С 2X2 SC СОЕДИНИТЕЛЯМИ, РУКОВОДСТВО ПО УСТАНОВКЕ, ДЛИНА 200 M | 820.44 |
| 6XV1873-6AT30 | 5K2 | SIEMENS SIMATIC NET СТЕКЛОВОЛОКОННЫЙ СТАНДАРТНЫЙ КАБЕЛЬ 50/125, СОБРАННЫЙ С 2X2 SC СОЕДИНИТЕЛЯМИ, РУКОВОДСТВО ПО УСТАНОВКЕ, ДЛИНА 300 M | 1208.40 |
