MINERALS AUTOMATION STANDARD
The MINERALS AUTOMATION STANDARD is a process control system based on CEMAT and designed with the specific requirements of the mining industry in mind. It combines cement plant automation functions, developed over more than 35 years, with the automation functions typically required for mining applications.
Like CEMAT, the MINERALS AUTOMATION STANDARD also uses the modern SIMATIC PCS 7 process control system, with its open and flexibly scalable architecture, as its system platform. This means that it also benefits from the innovative Advanced Process Library (APL), which takes the experience gained by configuration engineers and plant operators over many years and transforms it into an excellent range of basic functions that have an attractive design and are extremely easy to use.
Building on this, the MINERALS AUTOMATION STANDARD optimizes both the operating philosophy as well as the diagnostics, signaling, and interlocking concept by using industry-specific software packages for the specific tasks that take place in the mining industry.
Функции
MINERALS AUTOMATION STANDARD

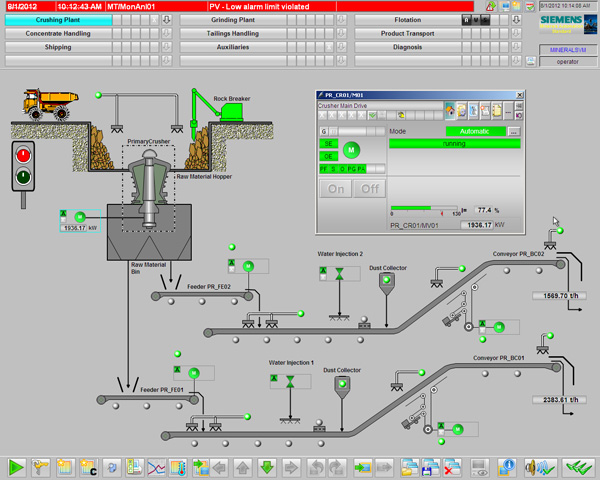

Drive faceplate
The functionality for the mining industry supplied in the form of the MINERALS AUTOMATION STANDARD software packages is integrated into the system structure of SIMATIC PCS 7 during the installation, and can be classified as follows:
- Engineering components with function block libraries specifically tailored to the mining industry
- Automation components for open-loop/closed-loop control with communications components for the controller connection
- HMI components with:
- Redundancy and archiving functions
- Library for all control system objects with information, diagnostic, and multimedia dialogs
- Alarm system with industry-specific service functions
- Diagnostic system for fast recognition of faults and reduction of downtimes
- Additional functions such as signal tracking and signal status information
- APL-style design
- Web-compatible visualization of process displays and faceplates
- Management information: listing and statistics functions as well as long-term archiving
- Technological interfaces for linking technological add-on modules which are not part of the MINERALS AUTOMATION STANDARD product spectrum (as well as products from other manufacturers)

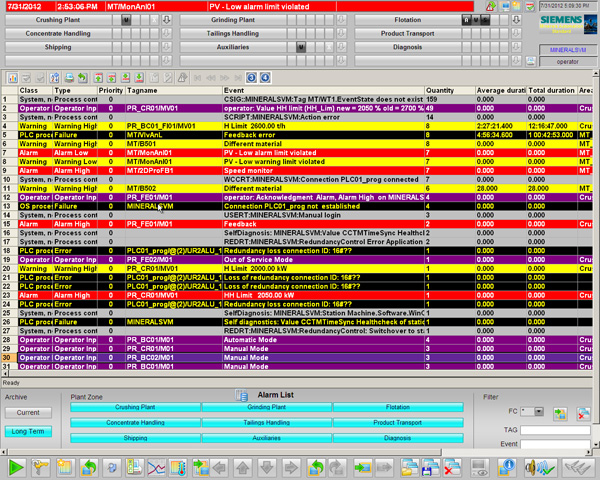

Message display with sector-specific information and message selection area
It is especially worth noting the extensive multimedia support, e.g. by means of:
- Video sequences for operating and service personnel
- Showing of pictures in process screens
- Integration of AutoCAD drawings (DXF format)
- Integration of plant plans
- Context-sensitive provision of information depending on place and time

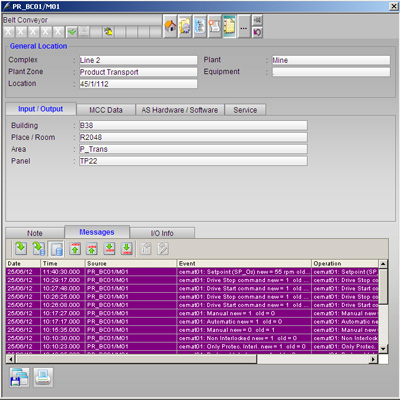

Object-based information area with I/O information
Notes on delivery
MINERALS AUTOMATION STANDARD is currently available as Version 8.0.
MINERALS AUTOMATION STANDARD V8.0 can be used on system platform SIMATIC PCS 7 V8.0 incl. update 1. SIMATIC PCS 7 is not included in the CEMAT scope of delivery and instead must be ordered separately where required (see Catalog ST PCS 7).
Дальнейшая информация
MINERALS AUTOMATION STANDARD Siemens AGIndustry SectorIndustry AutomationIndustrial Automation SystemsErlangen
Fax: +49 9131 18-3444
E-Mail: cemat.industry@siemens.com
Заказные данные
Цена на сайте указана розничная в ЕВРО без учета НДС.Для уточнения цены и размера предоставляемой скидки - звоните или присылайте заявки
| Заказной номер | PG | Описание продукта | Цена |
| 6DL5433-8AA08-0XA0 | 288 | CEMAT, SOFTWARE SERVER REDUNDANCY V8.0 (3 AS) SINGLE LICENSE F.2 INSTALLATION R-SW, SW AND DOCU. ON DVD LICENSE KEY ON USB STICK, CLASS A, 2 LANGUAGES (G, E), EXECUTABLE UNDER SERVER 2003 R2/ SERVER 2008 R2 REFERENCE-HW: PCS 7 V8.0 IPC BUNDLE | 8326.30 |
| 6DL5433-8AB08-0XA0 | 288 | CEMAT, SOFTWARE SERVER REDUNDANCY V8.0 (6 AS) SINGLE LICENSE F.2 INSTALLATION R-SW, SW AND DOCU. ON DVD LICENSE KEY ON USB STICK, CLASS A, 2 LANGUAGES (G, E), EXECUTABLE UNDER SERVER 2003 R2/ SERVER 2008 R2 REFERENCE-HW: PCS 7 V8.0 IPC BUNDLE | 12285.40 |
| 6DL5433-8AB08-0XD0 | 288 | CEMAT, SOFTWARE SERVER REDUNDANCY V8.0 POWERPACK FROM 3 AS TO 6 AS, SINGLE LICENSE F.2 INSTALLATION R-SW, WITHOUT SW AND DOKU. LICENSE KEY ON USB STICK, CLASS A, 2 LANGUAGES (G, E), EXECUTABLE UNDER SERVER 2003 R2/ SERVER 2008 R2 REFERENCE-HW: PCS 7 V8.0 IPC BUNDLE | 3959.10 |
| 6DL5433-8AC08-0XA0 | 288 | CEMAT, SOFTWARE SERVER REDUNDANCY V8.0 (9 AS) SINGLE LICENSE F.2 INSTALLATION R-SW, SW AND DOCU. ON DVD LICENSE KEY ON USB STICK, CLASS A, 2 LANGUAGES (G, E), EXECUTABLE UNDER SERVER 2003 R2/ SERVER 2008 R2 REFERENCE-HW: PCS 7 V8.0 IPC BUNDLE | 16244.50 |
| 6DL5433-8AC08-0XD0 | 288 | CEMAT, SOFTWARE SERVER REDUNDANCY V8.0 POWERPACK FROM 6 AS TO 9 AS, SINGLE LICENSE F.2 INSTALLATION R-SW, WITHOUT SW AND DOKU. LICENSE KEY ON USB STICK, CLASS A, 2 LANGUAGES (G, E), EXECUTABLE UNDER SERVER 2003 R2/ SERVER 2008 R2 REFERENCE-HW: PCS 7 V8.0 IPC BUNDLE | 3959.10 |
| 6DL5433-8AD08-0XA0 | 288 | CEMAT, SOFTWARE SERVER REDUNDANCY V8.0 (UNLIMITED), SINGLE LICENSE F.2 INSTALLATION R-SW, SW AND DOCU. ON DVD, LICENSE KEY ON USB STICK, CLASS A, 2 LANGUAGES (G, E), EXECUTABLE UNDER SERVER 2003 R2/ SERVER 2008 R2 REFERENCE-HW: PCS 7 V8.0 IPC BUNDLE | 20203.60 |
| 6DL5433-8AD08-0XD0 | 288 | CEMAT, SOFTWARE SERVER REDUNDANCY V8.0 POWERPACK FROM 9 AS TO UNLIMITED AS SINGLE LICENSE F.2 INSTALLATION R-SW, WITHOUT SW AND DOKU. LICENSE KEY ON USB STICK, CLASS A, 2 LANGUAGES (G, E), EXECUTABLE UNDER SERVER 2003 R2/ SERVER 2008 R2 REFERENCE-HW: PCS 7 V8.0 IPC BUNDLE | 3959.10 |
| 6DL5434-8AA08-0XA0 | 288 | CEMAT, SOFTWARE SINGLE STATION V8.0 (3 AS) SINGLE LICENSE F.1 INSTALLATION R-SW, SW AND DOCU. ON DVD LICENSE KEY ON USB STICK, CLASS A, 2 LANGUAGES (G, E), EXECUTABLE UNDER XPPROF/ SERVER 2003 R2/WIN7ULT/ SERVER 2008 R2 REFERENCE-HW: PCS 7 V8.0 IPC BUNDLE | 5238.52 |
| 6DL5435-8AX08-0XA0 | 288 | CEMAT, SOFTWARE CLIENT V8.0, SINGLE LICENSE F.1 INSTALLATION R-SW, SW AND DOCU. ON DVD LICENSE KEY ON USB STICK, CLASS A, 2 LANGUAGES (G, E), EXECUTABLE UNDER SERVER 2003 R2/ SERVER 2008 R2 REFERENCE-HW: PCS 7 V8.0 IPC BUNDLE | 826.80 |
| 6DL5436-8AX08-0XA0 | 288 | CEMAT, SOFTWARE ENGINEERING V8.0 SINGLE LICENSE F.1 INSTALLATION E-SW, SW AND DOCU. ON DVD LICENSE KEY ON USB STICK, CLASS A, 2 LANGUAGES (G, E), EXECUTABLE UNDER XPPROF/ SERVER 2003 R2/WIN7ULT/ SERVER 2008 R2 REFERENCE-HW: PCS 7 V8.0 IPC BUNDLE | 3087.78 |
