40 mm center-to-center clearance, 12 x 5 or 2 x (12 x 5)

3NP40 15-1CK01

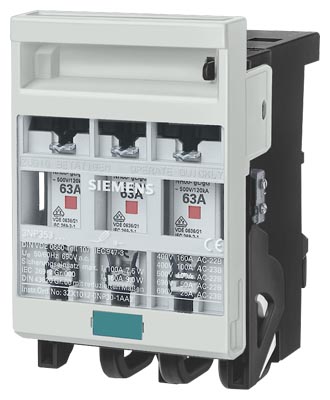

Fuse switch disconnectors, for NH000 fuse links

• Rated current In: 160 A
• Rated operational current Ie: 145 A
• Connection 1.5 to 50 mm2
• Fuses with max. 21 mm width, size 000 (according to IEC 269-2-1 and DIN 43620).
• Connection over cable lugs, top

3NP4015-1CK01

8HP6 4..

Covers for 3NP4 01

Versions

• Sealable

8HP6433

• Not sealable

8HP6434

3NP40 75-1CE01

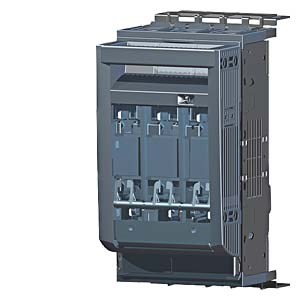

Fuse switch disconnectors, for NH00 fuse links

• Rated current In: 160 A
• Rated operational current Ie: 145 A
• Connection up to 120 mm2

Versions

• Connection over cable lugs, top (M8)

3NP4075-1CE01

• Connection over cable lugs, bottom (M8)

3NP4075-1CF01

8HP6 4..

Covers for 3NP407

Versions

• Single mounting

• Sealable

8HP6425

• Not sealable

8HP6435

• Double mounting

• Sealable

8HP6426

• Not sealable

8HP6436

3NP42 75-1CG01

Fuse switch disconnectors, for NH1 fuse links

• Rated current In: 250 A
• Rated operational current Ie: 225 A
• Connection up to 150 mm2
• Connection over cable lug top (M10) and bottom (M10)

3NP4275-1CG01

Note

• Raised cover or intermediate frame required see Distribution Systems –> Empty Enclosures.
• When using Cu 12 × 5 mm, a 3NY7 381 bar thickness compensation must be used (1 set = 5 components).
• If mounting on 5-mm busbars, an additional 3NY7 381 busbar thickness compensator is required.

8HP6 4..

Covers for 3NP4 2

Versions

• Sealable

8HP6427

• Not sealable

8HP6437

49 mm center-to-center clearance, 20 x 8 or 2 x (20 x 8)

Fuse switch disconnectors, for NH00 / 2x NH00 / NH1 fuse links from A. Jung, Ostrach

• All isolators incl. cover

Versions

Rated current In

Rated operational current Ie

Connection

• NH00

160 A

145 A

Up to 50 mm² terminal clamp, top or bottom

8HP4310

• 2x NH00

160 A

145 A

Up to 50 mm² terminal clamp, top or bottom

8HP4311

• NH1

250 A

225 A

Up to 120 mm² cable connection, top or bottom

8HP4314

Note

Raised cover or intermediate frame required see Distribution Systems –> Empty Enclosures.
