ENG: SINUMERIK 828D BASIC M The SINUMERIK 828D BASIC M is an operator-panel-based CNC, tailored for use in modern standard milling machines.

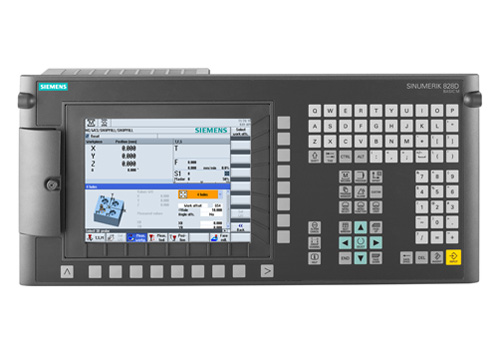

SINUMERIK 828D BASIC M PPU 241.2, horizontal
SINUMERIK 828D BASIC M PPU 240.2, vertical
Особенности
ENG: SINUMERIK 828D BASIC M - Compact, rugged, and maintenance-free operator-panel CNC
- User-friendly input of program and parameters using QWERTY keyboard
- Highest machining precision with 80 bit NANOFP accuracy
- The new user interface SINUMERIK Operate
- Intelligent kinematic transformations for the machining of cylindrical workpieces
- Technology package SINUMERIK MDynamics with the new function Advanced Surface: Perfect workpiece surfaces and very fast machining times in the production of moldmaking workpieces
- ShopMill: Very fast programming time in the production of individual parts and small batches
- programGUIDE: Very fast machining times and maximum flexibility in the manufacture of workpieces in large batch sizes
- Unique spectrum of technology cycles - ranging from the machining of any milling contours with residual material detection to in-process measurements
- Animated Elements: Unique operating and programming support with moving picture sequences
- State-of-the-art data transmission via USB stick, CompactFlash card and plant network (Ethernet)
- Easy Message: Maximum machine availability thanks to process monitoring based on text messaging (SMS)
Функции
ENG: SINUMERIK 828D BASIC M - Operator-panel CNC with dedicated system software for milling technologies
- 2 operator panel variants for horizontal and vertical operator panel housings
- Integrated QWERTY full CNC keyboard with short-stroke keys
- USB, CF card and Ethernet interface on the operator panel front
- Additional Ethernet interface on rear of CNC for connection to factory network
- Optional GSM/GPRS modem connection: Easy Message
- CNC options subject to license
- Up to 5 axes/spindles
- 1 machining channel/mode group
- Integrated tool management with tool life monitoring
- Optional management of replacement tools
- Graphical machining step programming ShopMill available as an option
- User interface SINUMERIK Operate which can be integrated in SINUMERIK 840D sl
- Integrated PLC based on the SIMATIC S7-200 command set with ladder logic programming
- I/O interface based on PROFINET for the connection of PLC I/O devices and a machine control panel
- Configurable user screens Easy Screen
- Integrated data archiving procedure for simple data updates
- Faults will be remedied for a period of 24 months following 2nd commissioning on all system components in accordance with the repair service contract performance description.
SINUMERIK 828D BASIC M has restricted functionality in accordance with the export list restrictions and therefore does not require official approval as a result of its type in accordance with EU or German law.
Интеграция
ENG: SINUMERIK 828D BASIC M The following components can be connected to the SINUMERIK 828D BASIC M:
- Up to 2 electronic handwheels
- One mini handheld unit with handwheel
- Up to 3 I/O modules PP 72/48D PN or PP 72/48D 2/2A PN
- One MCP 310C PN or MCP 483C PN machine control panel
- A GSM/GPRS modem
- SINAMICS S120 Combi drive system via DRIVE-CLiQ
Технические данные
ENG: SINUMERIK 828D BASIC M | SINUMERIK 828D BASIC MPPU 240.2 vertical | SINUMERIK 828D BASIC MPPU 241.2 horizontal | |
|---|---|---|
| 6FC5370-4AM20-0AA0 | 6FC5370-3AM20-0AA0 | |
| Input voltage | 24 V DC, + 20 %/- 15 % | 24 V DC, + 20 %/- 15 % |
| Power consumption, max. | 60 W | 60 W |
| Mains buffering time | 3 ms (20 ms with SITOP smart) | 3 ms (20 ms with SITOP smart) |
| Degree of protection according to EN 60529 (IEC 60529) | ||
| IP65 (with closed front cover) | IP65 (with closed front cover) |
| IP20 (rear) | IP20 (rear) |
| Relative humidity | ||
| 5 … 95 % at 25 °C (77 °F) | 5 … 95 % at 25 °C (77 °F) |
| 5 … 95 % at 25 °C (77 °F) | 5 … 95 % at 25 °C (77 °F) |
| 5 … 90 % at 25 °C (77 °F) (no condensation) | 5 … 90 % at 25 °C (77 °F) (no condensation) |
| Ambient temperature | ||
| -20 … +55 °C (-4 ... 131 °F) | -20 … +55 °C (-4 ... 131 °F) |
| -20 … +70 °C (-4 ... 158 °F) | -20 … +70 °C (-4 ... 158 °F) |
| 0 ... 45 °C (32 ... 113 °F) (rear 0 ... 55 °C (32 ...131 °F)) | 0 ... 45 °C (32 ... 113 °F) (rear 0 ... 55 °C (32 ...131 °F)) |
| Dimensions | ||
| 483 mm (19.02 in) | 310 mm (12.20 in) |
| 220 mm (8.66 in) | 380 mm (14.96 in) |
| 105 mm (4.13 in) | 105 mm (4.13 in) |
| Weight, approx. | 4.5 kg (9.92 lb) | 4.5 kg (9.92 lb) |
Опции
ENG: SINUMERIK 828D BASIC M | CNC options for SINUMERIK 828D BASIC M PPU 240.2/PPU 241.2 | |
|---|---|
| Designation | Order No. |
| Manufacturer options | |
| Axis/spindle, each additional | 6FC5800‑0AC20‑0YB0 |
| Positioning axis/auxiliary spindle, each additional | 6FC5800‑0AC30‑0YB0 |
| TRANSMIT/Peripheral surface transformation | 6FC5800‑0AM27‑0YB0 |
| Pair of synchronized axes (gantry axes), basic | 6FC5800‑0AS51‑0YB0 |
| Travel to fixed stop with Force Control | 6FC5800‑0AM01‑0YB0 |
| Sag compensation, multi-dimensional (bidirectional compensation) | 6FC5800‑0AM55‑0YB0 |
| Evaluation of internal drive variables | 6FC5800‑0AS53‑0YB0 |
| SINUMERIK Operate runtime license OA Easy Screen | 6FC5800‑0AP64‑0YB0 |
| Drive Based Safety Integrated Extended Functions | 6SL5800‑0AC50‑0AA0 |
| User options | |
| Advanced Technology(expansion of the technology cycles for turning and milling)1) | 6FC5800-0AP58-0YB0 |
| Extended operator functions2) | 6FC5800‑0AP16‑0YB0 |
| ShopTurn/ShopMill sequence programming | 6FC5800‑0AP17‑0YB0 |
| Residual material detection and machining for contour pockets and cutting | 6FC5800‑0AP13‑0YB0 |
| 3D simulation of the finished part | 6FC5800‑0AP25‑0YB0 |
| Simultaneous recording (real-time simulation of current machining) | 6FC5800‑0AP22‑0YB0 |
| Measuring cycles for drilling/milling and turning | 6FC5800‑0AP28‑0YB0 |
| Network drive management | 6FC5800‑0AP01‑0YB0 |
| Replacement tools for tool management | 6FC5800‑0AM78‑0YB0 |
| RCS Host remote diagnostics function | 6FC5800-0AP30-0YB0 |
| Contour handwheel | 6FC5800‑0AM08‑0YB0 |
| Advanced Surface | Basic scope |
| Spline interpolation (A, B and C splines) | 6FC5800‑0AS16‑0YB0 |
1) The CNC option extended technology functions provides you with the following technology cycles for the additional machining operations listed below:
- Drill and thread milling
- Thread milling
- Multi-edge milling
- Engraving
- Milling of contour pockets and spigots (with up to 12 islands)
2) The operator functions in the basic scope of the SINUMERIK 828D BASIC M are dimensioned for standard applications. With the CNC option extended operator functions, the following additional operator functions can be enabled:
- Overstoring
- Teach-in
- DRF offset
- Extended block search
- Save workpiece setup data
- Additional measuring versions beyond standard scope
- Setting the workpiece zero in standard scope: set edge, align edge, right-angled corner, 1 hole and 1 circular spigot
- Expansion of measurement windows via combination field
- Display of active synchronous actions in HMI
- Number of levels for skip blocks 10
- Load/save MDA program
Дальнейшая информация
Заказные данные
Цена на сайте указана розничная в ЕВРО без учета НДС.Для уточнения цены и размера предоставляемой скидки - звоните или присылайте заявки
| Заказной номер | PG | Описание продукта | Цена |
| 6FC5830-0CY40-0YA8 | 712 | SINUMERIK 828D PPU240/241/260/261/280/281 ЭКСПОРТНОЕ ПО 4.3 HF1 НА DVD БЕЗ ЛИЦЕНЗИИ | 186.61 |
| 6FC5835-2GY40-2YA0 | 712 | SINUMERIK 828D, PPU240/241 CNC-SOFTWARE MILLING; EXPORT SOFTWARE 4.5 SP2 HF1 ON CF-CARD WITH LICENSE FOR DELIVERY PACKAGE IS THE CF CARD INCLUDED ON SINUMERIK | 505.86 |
| 6FC5860-7YC00-0YA0 | 713 | SINUMERIK RCS COMMANDER, ДЛЯ PC/PG, АКТУАЛЬНОЕ ПО НА ON CD-ROM С ЛИЦЕНЗИЯ | 58.48 |
| 6SL3070-0AA00-0AG0 | 753 | SINAMICS MICROMASTER SIZER УТИЛИТА ДЛЯ ПРОЕКТИРОВАНИЯ DVD ДЛЯ WINDOWS 2000 SP4 И WINDOWS XP PROFESSIONAL SP3 И WINDOWS XP HOME SP3 ВЕРСИЯ V3,01 | 36.49 |
| 6SL3072-0AA00-0AG0 | 753 | STARTER УТИЛИТА ДЛЯ ПУСКОНАЛАДКИ SINAMICS И MICROMASTER ВЕРСИЯ V4.1 SP2 DVD ДЛЯ WINDOWS 2000 SP3,SP4 И WINDOWS 2003 SERVER SP1 И WINDOWS XP PROF SP1, SP2, SP3 НЕМЕЦКИЙ/АНГЛИЙСКИЙ/ИСПАНСКИЙ/Ф РАНЦУЗСКИЙ И ИТАЛЬЯНСКИЙ | 30.42 |
Аксессуары
Цена на сайте указана розничная в ЕВРО без учета НДС.Для уточнения цены и размера предоставляемой скидки - звоните или присылайте заявки
| Заказной номер | PG | Описание продукта | Цена |
| 6FC5313-5AG00-0AA2 | 711 | SINUMERIK COMPACTFLASH CARD 2GB EMPTY | 186.03 |
| 6FC5348-2AA00-0AA0 | 712 | SINUMERIK 828D PPU FRONT COVER | 63.13 |
