ENG: SinuTrain for SINUMERIK Operate SinuTrain for SINUMERIK Operate is a PC-based CNC training/programming software package. SinuTrain for SINUMERIK Operate enables completely identical operator control and CNC programming as on SINUMERIK CNC systems that are equipped with graphical user interface SINUMERIK Operate.
SinuTrain for SINUMERIK Operate can be used for the following applications:
- Self-study or professional training of SINUMERIK operation and CNC programming
- Offline CNC program creation and simulation
- Professional presentation of SINUMERIK operation and CNC programming
To allow you to experience the advantages of using SinuTrain for SINUMERIK Operate, we can provide a trial version for 60 days. The trial version can be ordered on DVD-ROM for a nominal charge, or downloaded free of charge from the Internet.
Особенности
ENG: SinuTrain for SINUMERIK Operate - User-friendly, control-identical simulation of operation and CNC programming of SINUMERIK controls on the PC
- Maximum compatibility thanks to integrated original SINUMERIK CNC software
- Accurate simulation of machine operation with inexpensive virtual machine control panel
- State-of-the-art fully graphical CNC user interface with moving picture sequences for clarification of technological sequences (Animated Elements)
- Optimum training software with a wide CNC programming spectrum – from ISO and CNC high-level language to fully graphical machining step programming
- High process safety through realistic graphical CNC simulation – including multi-channel machining operations
Функции
ENG: SinuTrain for SINUMERIK Operate Technologies
SinuTrain for SINUMERIK Operate can be used for the following machining technologies:
- Milling (SinuTrain ShopMill and SinuTrain complete package)
- Turning (SinuTrain ShopTurn and SinuTrain complete package)
- Other technologies1) and multi-channel capability (SinuTrain complete package)
Adaptation to the machine
CNC programs created with SinuTrain for SINUMERIK Operate can be used on real machines. However, this requires SinuTrain to be adapted to the SINUMERIK configuration of the machine. This adaptation can be made either by the user with the configuration tool or by a Siemens service specialist. To allow operation of a larger array of machinery, several different configurations can be stored in Sinutrain for SINUMERIK Operate. In order to ensure maximum compatibility with different SINUMERIK software versions on the machine, multiple copies of SinuTrain for SINUMERIK Operate can be installed in the relevant software versions on one PC.

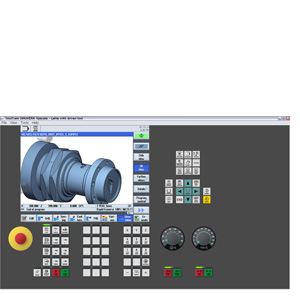

Accurate simulation of real operator control on the machine
With its fully-fledged, virtual machine control panel, SinuTrain for SINUMERIK Operate offers functions such as CNC Start, CNC Stop or feedrate and spindle override and can therefore be operated just like a real machine.
Online help
Like a SINUMERIK CNC, SinuTrain for SINUMERIK Operate also offers a comprehensive online help. In addition, the SinuTrain DVD-ROM includes training manuals for the self-study of SINUMERIK operating and programming procedures.
Programming, simulation and printing
- DIN/ISO programming with programGUIDE
- ShopMill/ShopTurn machining step programming
- Multi-channel programming with programSYNC (SinuTrain complete package only)
- Fully-fledged graphical CNC simulation
- TCP/IP Ethernet networking with machines
- Print function for DIN/ISO and ShopMill/ShopTurn machining step programs
- Integrated CAD reader for importing DXF files
1) For other technologies, consultation with the relevant machine manufacturer is recommended to ensure that the software can be optimally adapted to the CNC of the machine.
Интеграция
ENG: SinuTrain for SINUMERIK Operate SinuTrain for SINUMERIK Operate can be used for:
- SINUMERIK 840D sl from CNC software release 2.6 SP1
- SINUMERIK 828D from CNC software release 4.3
- SINUMERIK 828D BASIC T
- SINUMERIK 828D BASIC M
Preconditions
Hardware
- PC with 1.5 GHz processor (single core)
- RAM: 1 GB
- Hard disk: 2 GB of free memory space
- DVD drive for installation from DVD
- Graphics card: Minimum resolution 640 × 480 pixels
- USB interface
- Mouse, keyboard
- Training keyboard (optional)
Software
- Operating system Windows XP SP3 32-bit Professional/Home Edition(operating system Windows 7 32/64-bit (available soon)
- Adobe Acrobat Reader
Дальнейшая информация
ENG: SinuTrain for SINUMERIK Operate The first steps in working with SINUMERIK Operate can be learned quickly and easily through a web-based training program.
You can download a free trial version of SinuTrain for SINUMERIK Operate from the Internet.
You can find additional information on the Internet at:
http://www.cnc4you.siemens.com
Заказные данные
Цена на сайте указана розничная в ЕВРО без учета НДС.Для уточнения цены и размера предоставляемой скидки - звоните или присылайте заявки
| Заказной номер | PG | Описание продукта | Цена |
| 6FC5088-4AA22-4AB0 | 713 | АДАПТАЦИЯ СТАНКА ДЛЯ SINUTRAIN УСЛУГА 1 ДЕНЬ БЕЗ УЧЕТА ПЕРЕЛЕТА | 1514.46 |
| 6FC5870-0CC41-0YA0 | 713 | SINUTRAIN FOR SINUMERIK OPERATE VERSION 4.5 MCT (MACHINE CONFIGURATION TOOL) SINGLE LICENSE SINUMERIK 840D SL SINUMERIK 828D/828D BASIC WITH CNC-SOFTWARE 4.5 SP2 FOR WINDOWS 7 32/64 BIT FOR WINDOWS XP SP3 32 BIT CONDITION: INSTALLED SINUTRAIN FOR SINUMERIK OPERATE V4.5 | 389.63 |
| 6FC5870-0YC41-0YA0 | 713 | SINUTRAIN FOR SINUMERIK OPERATE VERSION 4.5 60-DAYS TRAILVERSION SINUMERIK 840D SL SINUMERIK 828D/828D BASIC WITH CNC-SOFTWARE 4.5 SP2 FOR WINDOWS 7 32/64 BIT FOR WINDOWS XP SP3 32 BIT TURNING / MILLING / UNIVERSAL MULTICHANNEL | 3.34 |
| 6FC5870-4YC41-0YA0 | 713 | SINUTRAIN FOR SINUMERIK OPERATE VERSION 4.5 SINGLE LICENSE SINUMERIK 840D SL SINUMERIK 828D/828D BASIC WITH CNC-SOFTWARE 4.5 SP2 FOR WINDOWS 7 32/64 BIT FOR WINDOWS XP SP3 32 BIT TURNING / MILLING / UNIVERSAL MULTICHANNEL | 1605.00 |
| 6FC5870-4YC41-0YC0 | 713 | SINUTRAIN FOR SINUMERIK OPERATE VERSION 4.5 UPGRADE FOR SINGLE LICENSE SINUMERIK 840D SL SINUMERIK 828D/828D BASIC WITH CNC-SOFTWARE 4.5 SP2 FOR WINDOWS 7 32/64 BIT FOR WINDOWS XP SP3 32 BIT TURNING / MILLING / UNIVERSAL MULTICHANNEL | 535.00 |
| 6FC5870-8YC41-0YA0 | 713 | SINUTRAIN FOR SINUMERIK OPERATE VERSION 4.5 CLASSROOM LICENSE (18) SINUMERIK 840D SL SINUMERIK 828D/828D BASIC WITH CNC-SOFTWARE 4.5 SP2 FOR WINDOWS 7 32/64 BIT FOR WINDOWS XP SP3 32 BIT TURNING / MILLING / UNIVERSAL MULTICHANNEL | 4280.00 |
| 6FC5870-8YC41-0YC0 | 713 | SINUTRAIN FOR SINUMERIK OPERATE VERSION 4.5 UPGRADE FOR CLASSROOM LICENSE SINUMERIK 840D SL SINUMERIK 828D/828D BASIC WITH CNC-SOFTWARE 4.5 SP2 FOR WINDOWS 7 32/64 BIT FOR WINDOWS XP SP3 32 BIT TURNING / MILLING / UNIVERSAL MULTICHANNEL | 1391.00 |
