SITRANS FUS1010 Standard clamp on - Clamp-on ultrasonic flowmeters

SITRANS FUS1010 is the most versatile clamp-on ultrasonic flowmeter available today. It can operate in either WideBeam Transit-Time or Reflexor (Doppler) mode, making it suitable for virtually any liquid, even those with high aeration or suspended solids.

SITRANS FUS1010 is available in single or dual channel, dual path configuration. Optional four channel, 4 path configurations, with your choice of IP65 (NEMA 4X), IP65 (NEMA 7) and IP66 (NEMA 7) explosion proof enclosures.

Особенности

Versatility; there is no need to change meters when operating conditions change
Easy installation; no need to cut pipe or stop flow
Minimal maintenance; external transducers do not require periodic cleaning
No moving parts to foul or wear
No pressure drop or energy loss
Wide turn-down ratio
Choice of single channel or dual channel/dual path, with doppler capability. Four channel/four beam optional.
- Optional four channels allow measurement of four independent pipes at the same time, reducing overall ownership costs
- Dual mode allows for transit time and reflexor operation at the same time on the same pipe
- Dual path allows for two sets of transducers to be set up on one pipe and averaged for higher accuracy
Wide-Beam technology automatically adjusts meter settings to the specific application upon installation for exceptional accuracy and extended applicability range
Zeromatic Path automatically sets zero without stopping flow and reduces zero drift, even at low flow

Область применения

FUS1010 is suitable for a wide variety of liquid applications, including the following:

Water industry
Raw water
Potable water
Sludges
Chemicals
Wastewater industry
Raw sewage
Effluent
Sludges
Mixed liquor
Chemicals
HVAC industry
Chillers
Condensers
Hot and cold water systems
Power industry
Nuclear
Fossil
Hydroelectric
Processing industry
Process control
Batching
Rate indication
Volumetric and mass measurement

Дизайн

FUS1010 is available in three configurations:

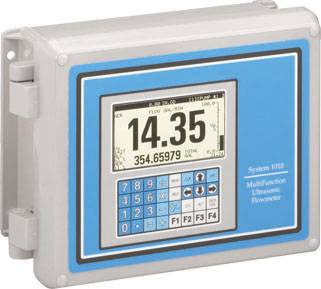

IP65 (NEMA 4X) enclosure
- Single channel
- Dual channel / dual path
- Four channel (optional)

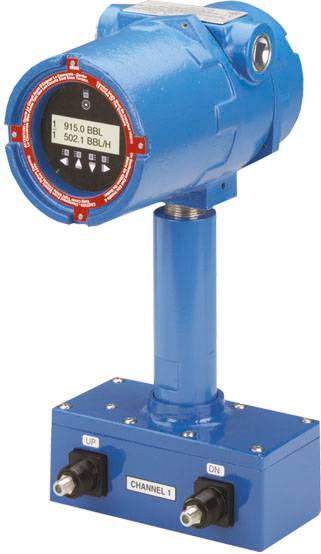

IP65 (NEMA 7) Compact explosion proof enclosure
- Single channel
- Dual channel / dual path

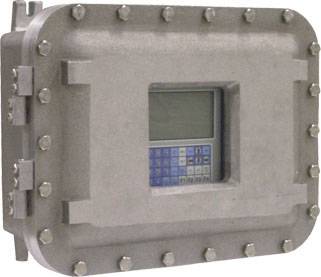

IP66 (NEMA 7) Wall mount explosion proof enclosure
- Single channel
- Dual channel / dual path
- Four channel (optional)

Функции

IP65 (NEMA 4X) and IP66 (NEMA 7) flow display computers have integral 33 button keypads and large (128 x 240 pixel) graphic displays visible up to 12 m (40 ft) away
IP65 (NEMA 7) compact flow display computer has a 2 x 16 Alphanumeric LCD display
Current, voltage, status alarm, frequency and RS232 outputs (see specification section for details)
Optional current, voltage and temperature inputs (see specification section for details)
Zeromatic Path automatically sets zero
Bidirectional flow operation
1 MByte data logger with both site and data logger storage
English, Spanish, German, Italian and French language options

Технические данные

SITRANS FUS1010, IP65 (NEMA 4X) Flow display computer

Enclosure IP65 (NEMA 4X)
Input
Flow range	± 12 m/s (± 40 ft/s), bidirectional
Pipe size	6.4 mm ... 9.14 m (0.25“ ... 360“)
Optional inputs single channel	Current: 2x 4 … 20 mA DC Voltage: 2x 0 … 10 V DC Temperature: 2x 4 wire 1 kW RTD
Output
Outputs single channel	Current: 2x 4 … 20 mA DC (1 kW at 30 V DC) Voltage: 2x 0 … 10 V DC (5 kW min.) Status Alarm: 4x SPDT relays Frequency: 2x 0 … 5 kHz RS232
Accuracy
Accuracy	± 0.5% ... 1.0% of flow, for velocities greater than 0.3 m/s (1 ft/s) ± 0.0015 ... 0.003 m/s (± 0.005 ... 0.01 ft/s), for velocities less than 0.3 m/s (1 ft/s)
Batch repeatability	± 0.15% of flow, for velocities greater than 0.3 m/s (1 ft/s) ± 0.0005 m/s (± 0.0015 ft/s), for velocities less than 0.3 m/s (1 ft/s)
Data refresh rate	5 Hz
Rated operation conditions
Degree of protection	IP65 (NEMA 4X)
Liquid temperature
Standard	-40 ... +120 °C (-40 ... +250 °F)
Option	-40 ... +230 °C (-40 ... +450 °F)
Ambient temperature	-18 … +60 °C (0 … +140 °F)
Design
Dimensions	see SITRANS F US Clamp-on “System info and selsction guide”
Weight	see diagrams
Power supply	90 ... 240 V AC, 50 ... 60 Hz., 30 VA or 9 ... 36 V DC, 12 W
Indication and operation
Data logger memory	1 MByte
Display	128 x 240 pixel LCD with backlight
Keypad	33 keypad buttons with tactile feedback
Language options	English, Spanish, German, Italian, French
Certificates and approvals
FM and CSA ratings	I.S. Class 1, 2, Div 1 N-I Class 1, Div 2 S Class 2, Div 2 (FM only)
ATEX ratings
Flow display computer	Ex II (1) G [EEx ia] IIC Ex II 3 (1) G EEx nC [ia] IIC T5
Transducers	Ex II 1 G EEx ia IIC T5 Ex II 2 G EEx m II T5 (for use with flowmeter in safe area)
CCOE rating	EEx (ia)
CEPEL ratings
Flow display computer	[BR-Ex ia] IIC T6 (pending on 4 channel) BR-Ex nC [ia] IIC T6 (pending)
Transducers	BR-Ex ia IIC T6 IP65
GoST ratings
Flow display computer	[Exia]IIC
Transducers	[Exia]IICT5

SITRANS FUS1010S, IP65 (NEMA 7) Compact explosion proof

Enclosure IP65 (NEMA 7)
Input
Flow range	± 12 m/s (± 40 ft/s), bidirectional
Pipe size	6.4 mm... 9.14 m (0.25” ... 360”)
Optional inputs single channel	Current: 1x 4 … 20 mA DC Temperature: 2x 4 wire 1 kΩ RTD
Output
Outputs single channel	Current (externally powered): 1x 4 … 20 mA DC (1 kΩ at 30 V DC) Status Alarm: 1x Isolated open collector Frequency: 2x 0 … 5 kHz RS232
Accuracy
Calibratable accuracy	0.1% (API proving method)
Intrinsic accuracy	± 0.5% ... 1.0% of flow, for velocities greater than 0.3 m/s (1 ft/s) ± 0.0015 ... 0.003 m/s (± 0.005 ... 0.01 ft/s), for velocities less than 0.3 m/s (1 ft/s)
Batch repeatability	± 0.15% of flow, for velocities greater than 0.3 m/s (1 ft/s) ± 0.0005 m/s (± 0.0015 ft/s), for velocities less than 0.3 m/s (1 ft/s)
Data refresh rate	5 Hz
Rated operation conditions
Degree of protection	IP65 (NEMA 7)
Liquid temperature
Standard	-40 ... +120 °C (-40 ... +250 °F)
Optional	-40 ... 230 °C (-40 ... +450 °F)
Ambient temperature	-18 … +60 °C (0 … +140 °F)
Design
Dimensions	see SITRANS F US Clamp-on “System info and selsction guide”
Weight	see diagrams
Power supply	90 ... 240 V AC, 50 ... 60 Hz., 15 VA or 9 ... 36 V DC, 10 W
Indication and operation
Data logger memory	1 MByte
Display	2 x 16 alphanumeric LCD display
Keypad	5 Magnetic hall effect switches
Language options	English, Spanish, German, Italian, French
Certificates and approvals
FM and CSA ratings	Ex Class 1, Div 1 D-I Class 2, Div 1 I.S. Class 1, Div 1 N-I Class 1, Div 2 S Class 2, Div 2 (FM only)
ATEX ratings
Flow display computer	Ex II 2 (1) G EEx d [ia] IIC T5
Transducers	Ex II 1 G EEx ia IIC T5
CCOE rating	EEx d
CEPEL ratings
Flow display computer	BR-Ex d [ia] IIC T6
Transducers	BR-Ex ia IIC T6 IP65

SITRANS FUS1010S, IP66 (NEMA 7) Wall mount explosion proof enclosure

Enclosure IP66 (NEMA 7)
Input
Flow range	± 12 m/s (± 40 ft/s), bidirectional
Pipe size	6.4 mm... 9.14 m (0.25” ... 360”)
Optional Inputs single channel	Current: 2x 4 … 20 m ADC Voltage: 2x 0 … 10 V DC Temperature: 2x 4 wire 1 k Ω RTD
Output
Outputs single channel	Current: 2x 4 … 20 mA DC (1 k Ω at 30 V DC) Voltage: 2x 0 … 10 V DC (5 kΩ min.) Status Alarm: 4x SPDT Relays Frequency: 2x 0 … 5 kHz RS232
Accuracy
Accuracy	± 0.5% ... 1.0% of flow, for velocities greater than 0.3 m/s (1 ft/s) ± 0.0015 ... 0.003 m/s (± 0.005 ... 0.01 ft/s), for velocities less than 0.3 m/s (1 ft/s)
Batch repeatability	± 0.15% of flow, for velocities greater than 0.3 m/s (1 ft/s) ± 0.0005 m/s (± 0.0015 ft/s), for velocities less than 0.3 m/s (1 ft/s)
Data refresh rate	5 Hz
Rated operation conditions
Degree of protection	IP66 (NEMA 7)
Liquid temperature
Standard	-40 ... +120 °C (-40 ... +250 °F)
Optional	-40 ... 230 °C (-40 ... 450 °F)
Ambient temperature	-18 … +60 °C (0 … 140 °F)
Design
Dimensions	see SITRANS F US Clamp-on “System info and selsction guide”
Weight	see diagrams
Power supply	90 ... 240 V AC, 50 ... 60 Hz., 30 VA or 9 ... 36 V DC, 12 W
Indication and operation
Data logger memory	1 MByte
Display	128 x 240 pixel LCD with backlight
Keypad	33 keypad buttons with tactile feedback
Language options	English, Spanish, German, Italian, French
Certificates and approvals
FM and CSA ratings	Ex Class 1, Div 1 D-I Class 2, Div 1 I.S. Class 1, Div 1 N-I Class 1, Div 2 S Class 2, Div 2 (FM only)
ATEX ratings
Flow display computer	Ex II (1) G [EEx ia] IIC Ex II 3 (1) G EEx nC [ia] IIC T5 Ex II 2 (1) G EEx d [ia IIC] IIB T5 Ex II 2 (1) G EEx d [ia IIC] IIB + H2 T5
Transducers	Ex II 1 G EEx ia IIC T5
CEPEL ratings
Flow display computer	[BR-Ex ia] IIC T6 (pending) BR-Ex nC [ia] IIC T6 (pending) BR-Ex d [ia] IIC T6 (pending)
Transducers	BR-Ex ia IIC T6 IP65

Transducer selection charts

Universal transducers for any pipe material
Transducer Size Code	Order Code	Outer diameter range (mm)		Outer diameter range (inches)
Transducer Size Code	Order Code	min	max	min	max
A2	B	12.7	50.8	0.5	2
B3	C	19	127	0.75	5
C3	D	51	305	2	12
D3	E	203	610	8	24
E2	F	254	6096	10	240

High precision transducers for steel pipe with outer diameter/wall thickness ratio > 10
Transducer	Order Code	Pipe wall (mm)		Pipe wall (inches)
Size Code	Order Code	min	max	min	max
A1H	G	0.635	1.016	0.025	0.04
A2H	H	1.016	1.524	0.04	0.06
A3H	J	1.524	2.032	0.06	0.08
B1H	K	2.032	3.048	0.08	0.12
B2H	L	3.048	4.064	0.12	0.16
C1H	M	4.064	5.842	0.16	0.23
C2H	N	5.842	8.128	0.23	0.32
D1H	P	8.128	11.176	0.32	0.44
D2H	Q	11.176	15.748	0.44	0.62
D4H	R	15.748	31.75	0.62	1.25

Transducer cable selection chart

Transducer cable codes for length and type options
Cable length m (ft)	Standard (PVC jacket) -40 … +80 °C (-40 … +176 °F)	Submersible (polyethylene jacket) -40 … +80 °C (-40 … +176 °F)	Plenum Rated (teflon jacket) -40 … +200 °C (-40 … +392 °F)	Armored -40 … +80 °C (-40 … +176 °F)
Cable length m (ft)	Order code
6 (20)	K01	K11	K21	K31
15 (50)	K02	K12	K22	K32
30 (100)	K03	K13	K23	K33
46 (150)	K04	K14	K24	K34
61 (200)	K05	K15	K25	K35
91 (300)	K06	K16	K26	K36

RTD cable selection chart

RTD cable codes for length and type
Cable length m (ft)	Standard (teflon wrapped) -40 ... +200 °C (-40 … +392 °F)	Submersible (extruded jacket) -40 ... +200 °C (-40 … +392 °F)
Cable length m (ft)	Order code
6 (20)	R01	R11
15 (50)	R02	R12
30 (100)	R03	R13
46 (150)	R04	R14
61 (200)	R05	R15
91 (300)	R06	R16

Заказные данные

Заказной №	Описание	Вес (кг)	Доставка	Мин. зак. (шт)
7ME3530-.....-....	SITRANS FUS1010 STANDARD CLAMP-ON, IP65 (NEMA 4X)	4.1	по запросу (D)	1
7ME3531-.....-....	SITRANS FUS1010 STANDARD CLAMP-ON, IP65 (NEMA 7), COMPACT	4.4	по запросу (X)	1
7ME3532-.....-....	SITRANS FUS1010 STANDARD CLAMP-ON, IP66 (NEMA 7), WALL MOUNTED	29	по запросу (X)	1
7ME3533-.....-....	SITRANS FUS1010 STANDARD CLAMP-ON, IP66 (NEMA 7), WALL MOUNTED, WITH DISPLAY WINDOW	31.8	по запросу (X)	1
